Rotary Contactor

Rotary Contactor

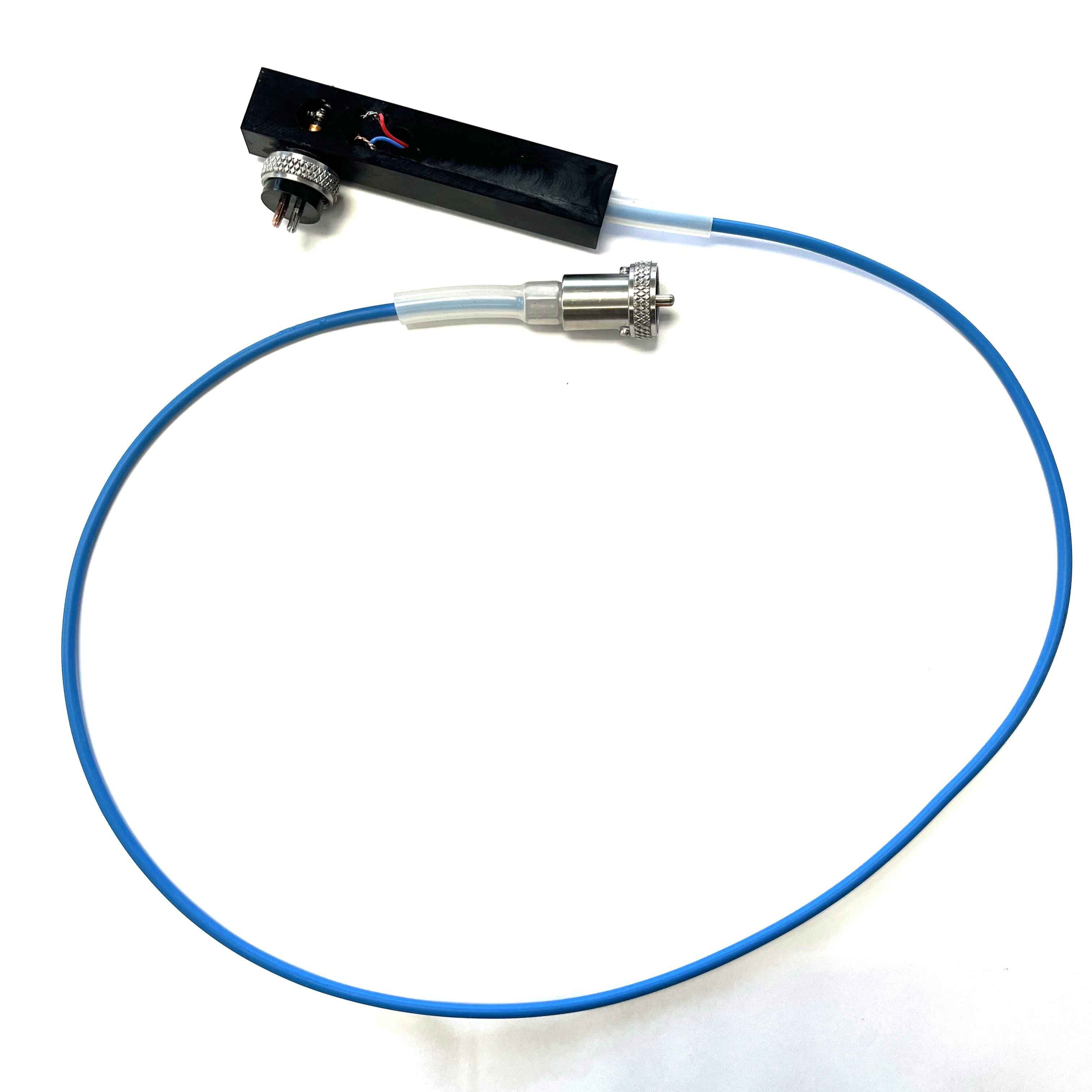

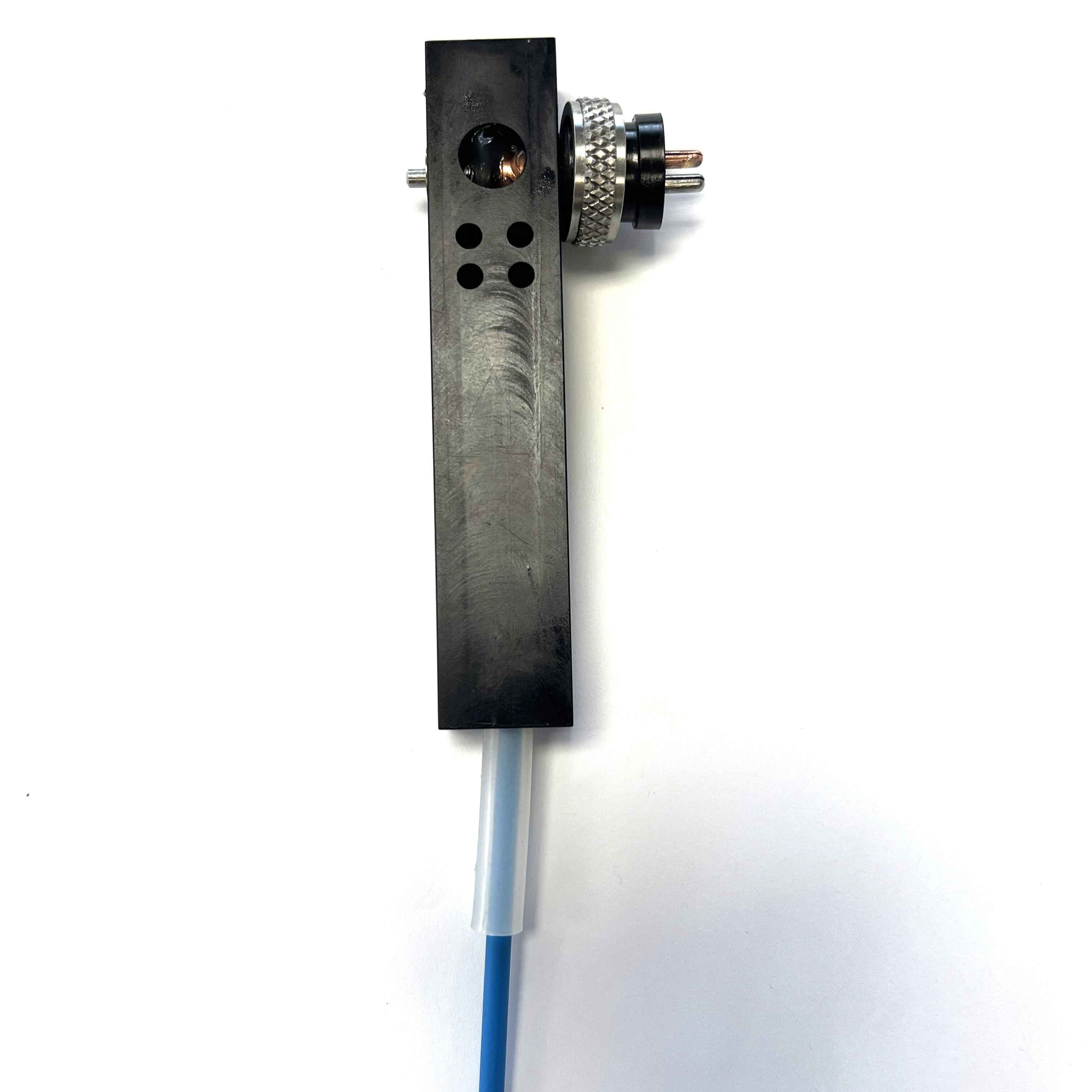

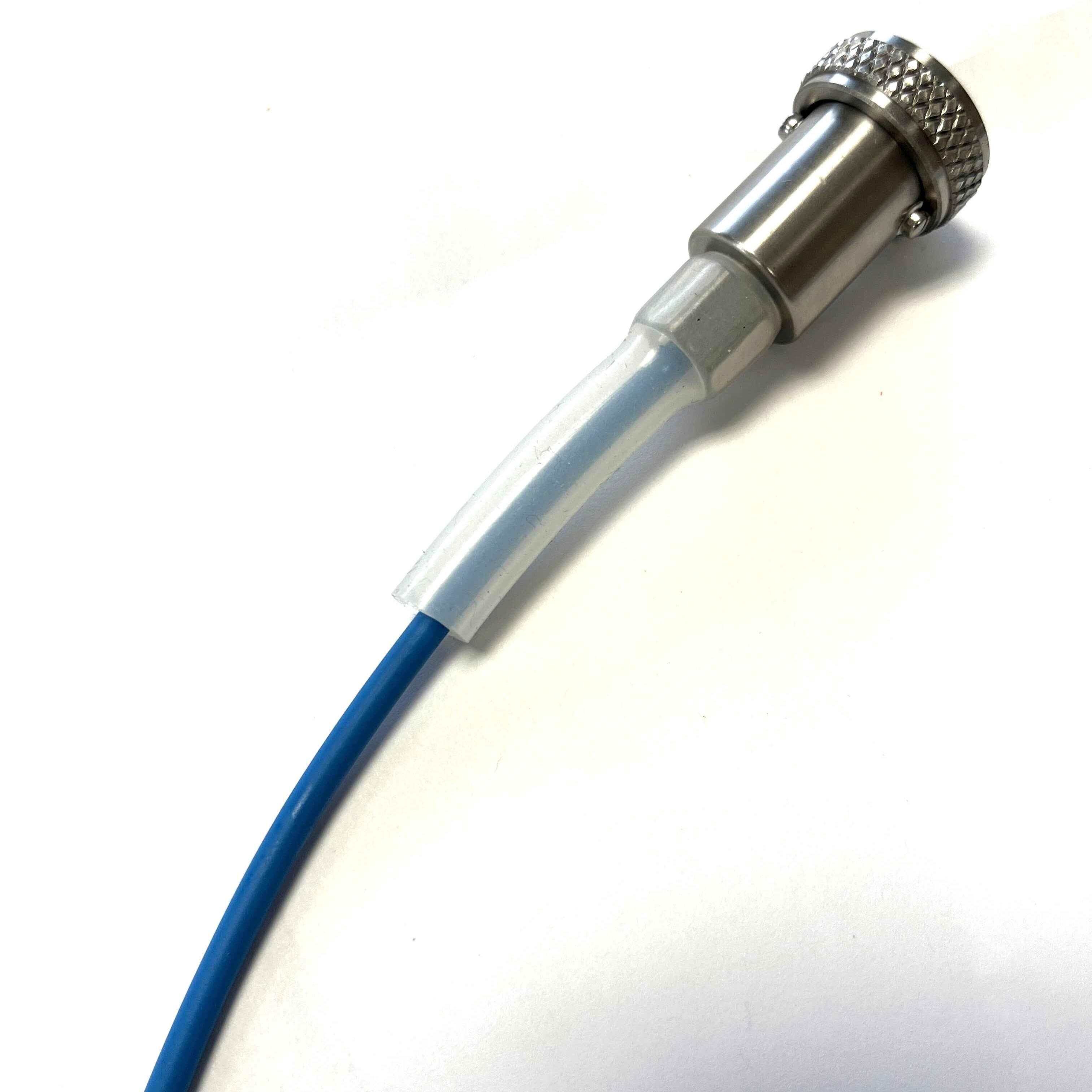

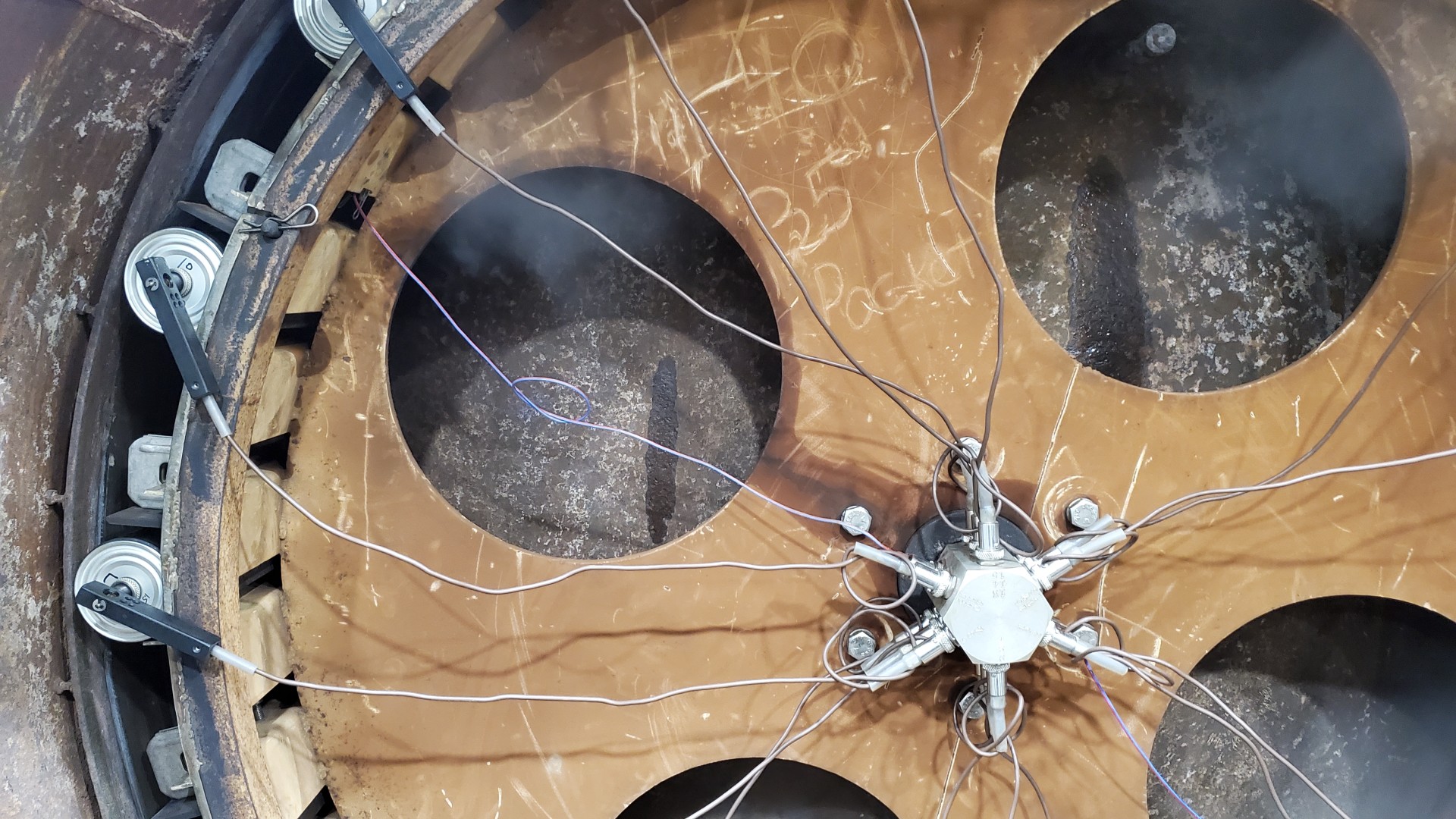

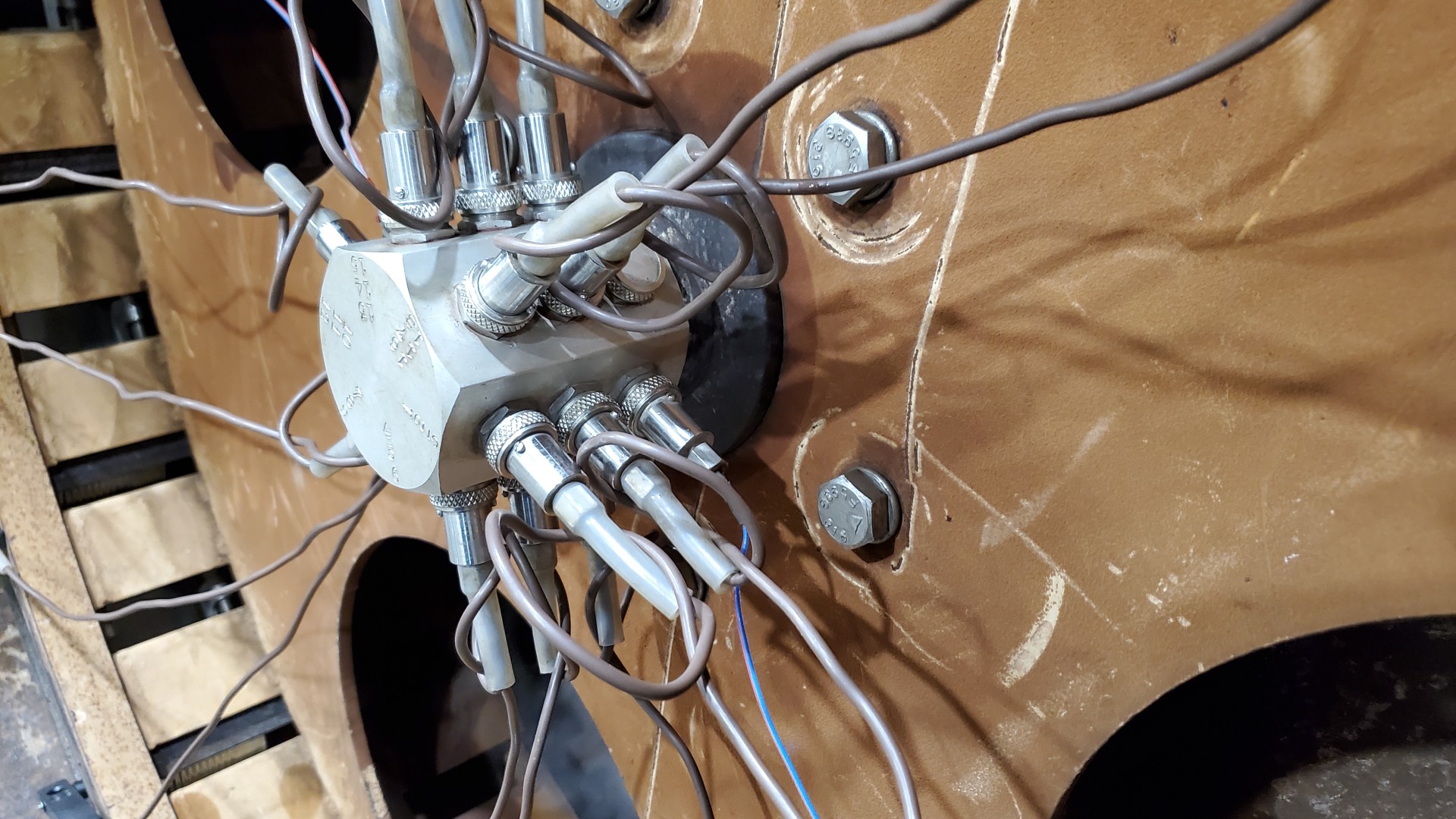

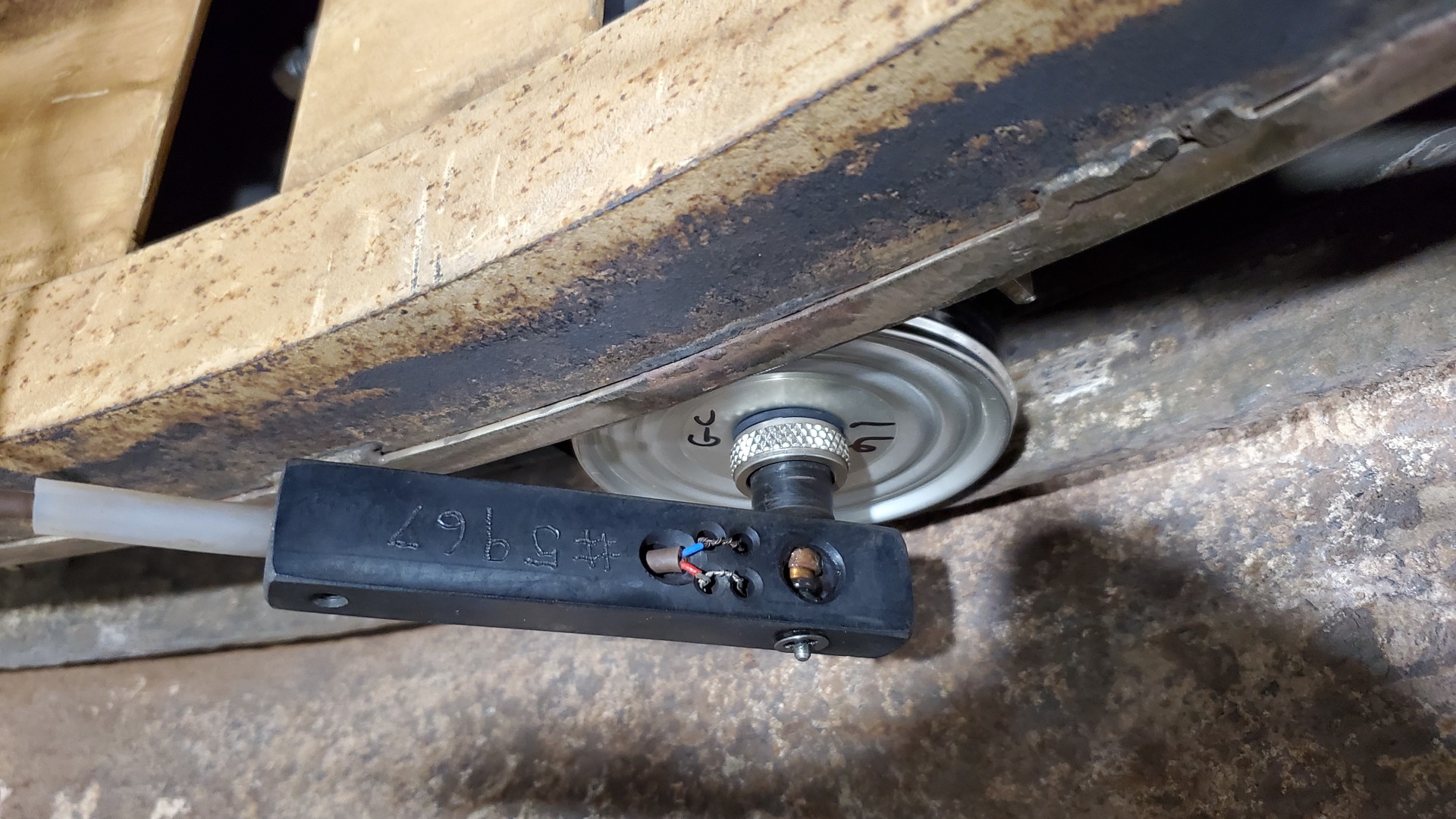

(#S28) The Rotary Contactor is used when heat penetration testing is conducted on cans that rotate on their axis, in an FMC Steritort. The rotating parts are small in diameter to reduce frictional torque. The rotor may be removed for cleaning by removing a snap ring. The rotary contactor includes 34" (0.86 m) of wie. Choose from the wire types below. A Male Locking Thermocouple Connector is installed on the end to connect to the Hub installed in the FMC Steritort.

Price
$426.50
each
Linked Title for Section

WIRE TYPES

Grouped Content

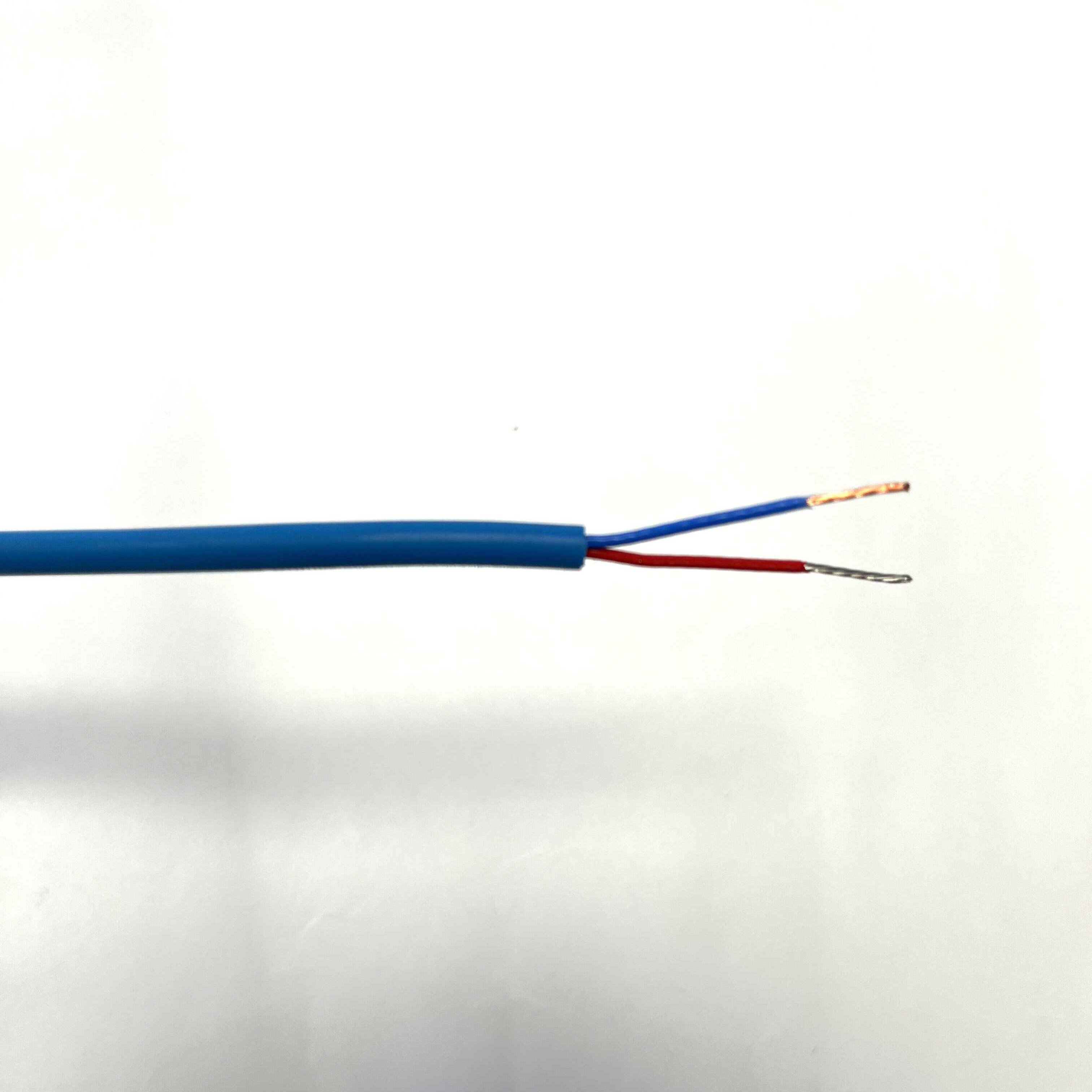

22 Gauge Stranded Wire
(#TEF-22-S) Two Stranded wires, copper constantan Type, each is 22 gauge, Clear Teflon overwrap protects the wires.
22 Gauge Stranded Wire (Stainless Braided)
(#SS-TEF-22-S) Two Stranded wires, copper constantan Type, each is 22 gauge, Stainless Steel Braided overwrap protects the wires.
