ThermaLock Fitting/Sheath

ThermaLock Fitting/Sheath

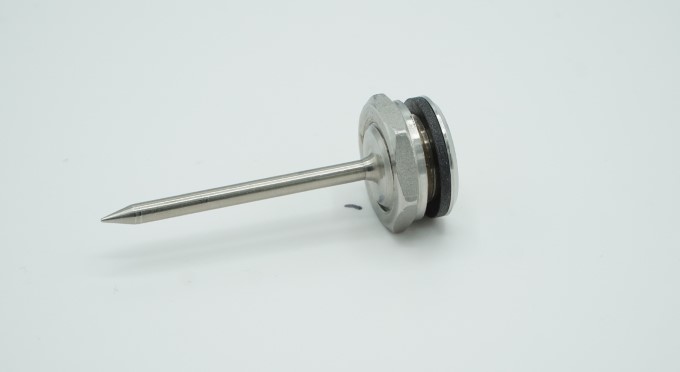

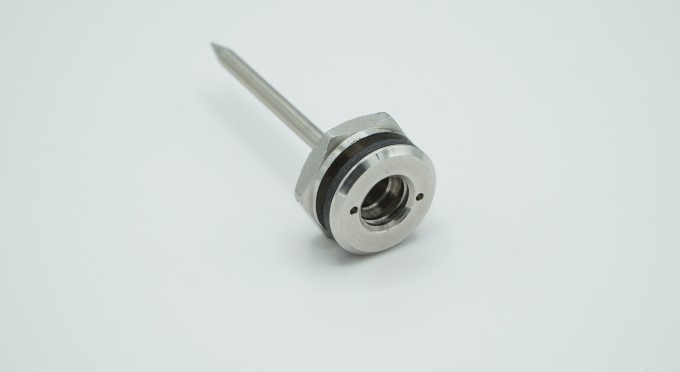

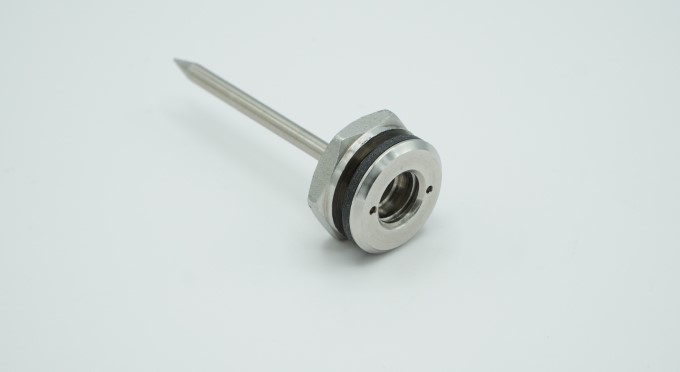

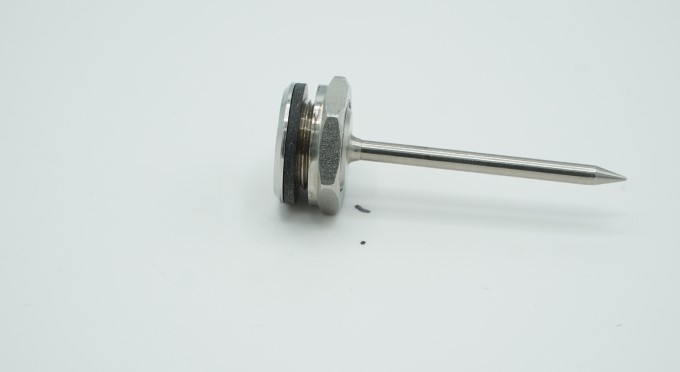

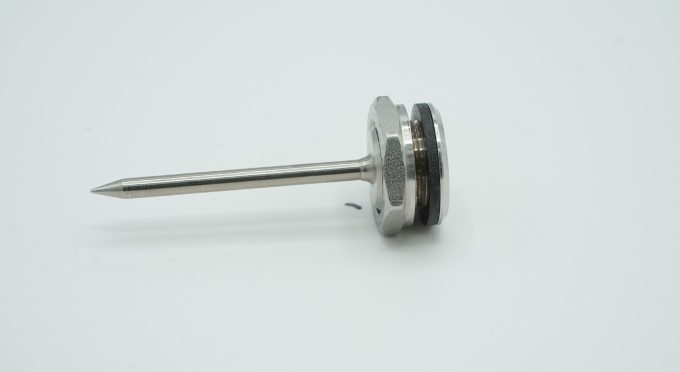

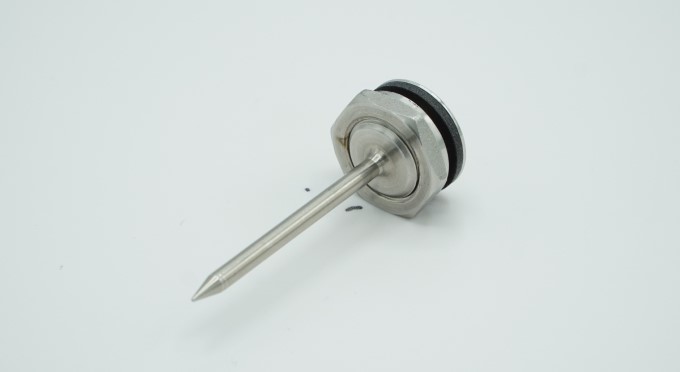

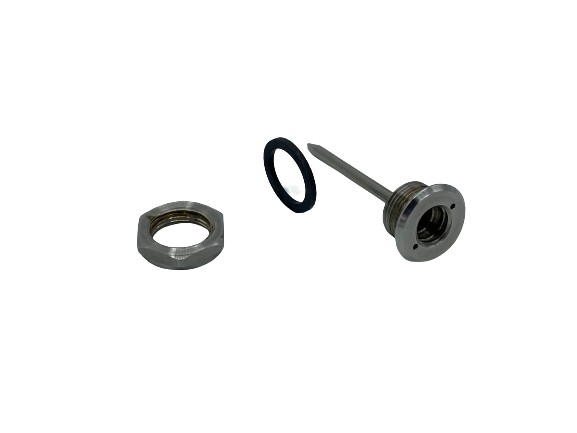

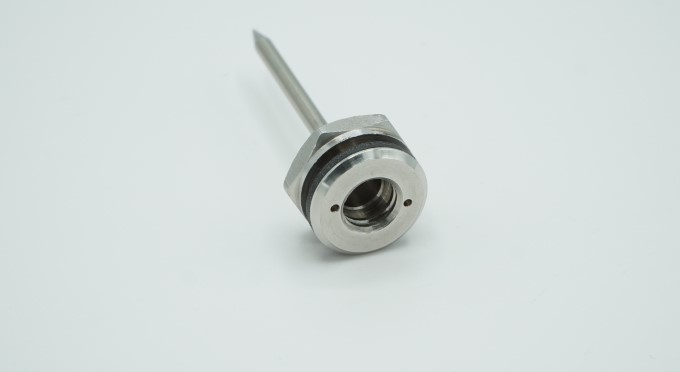

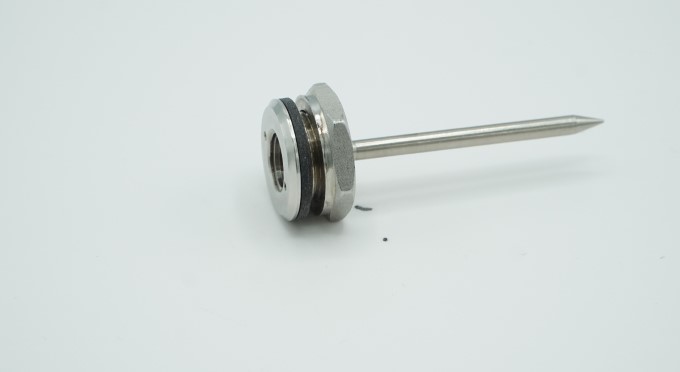

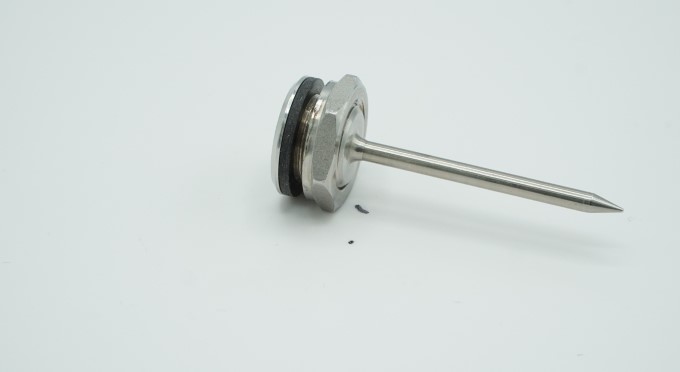

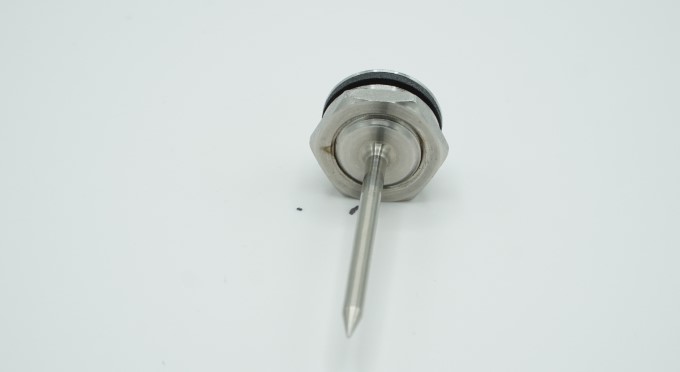

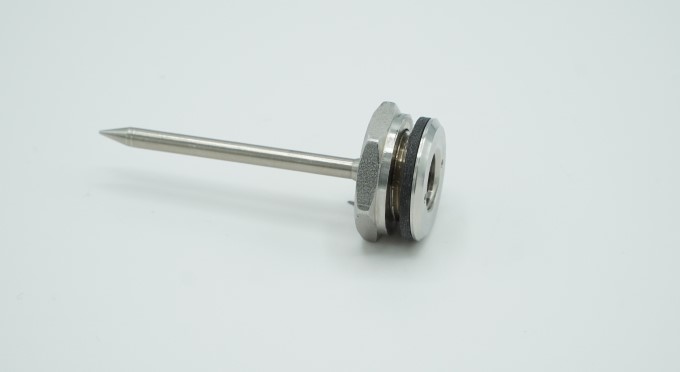

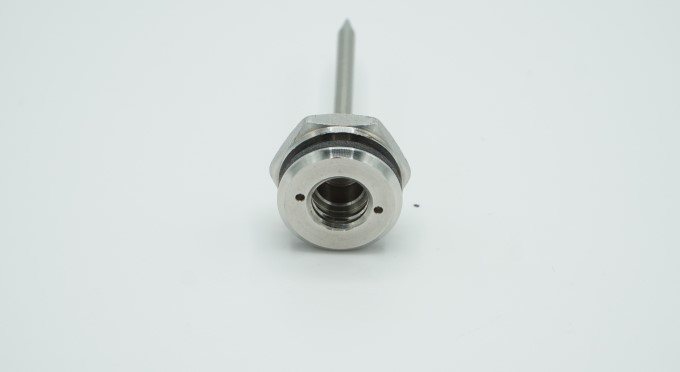

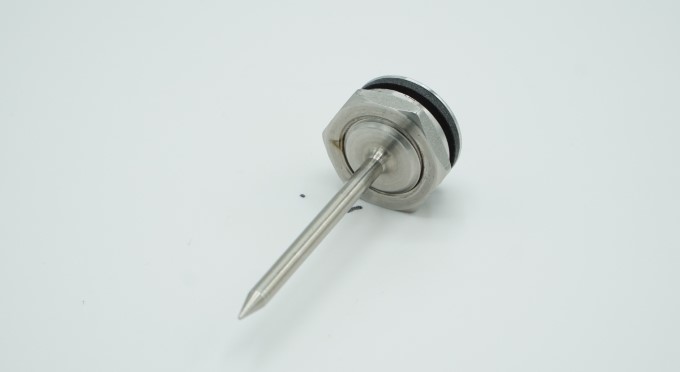

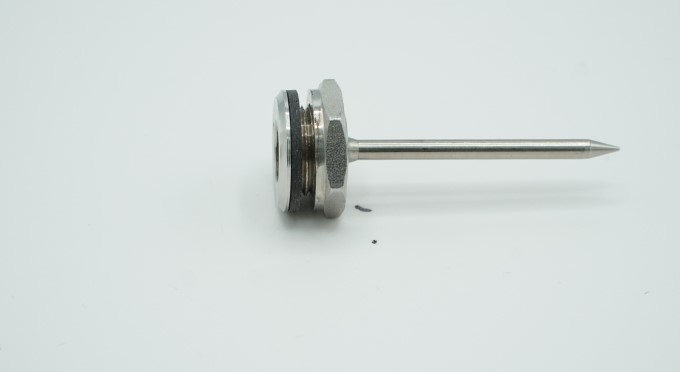

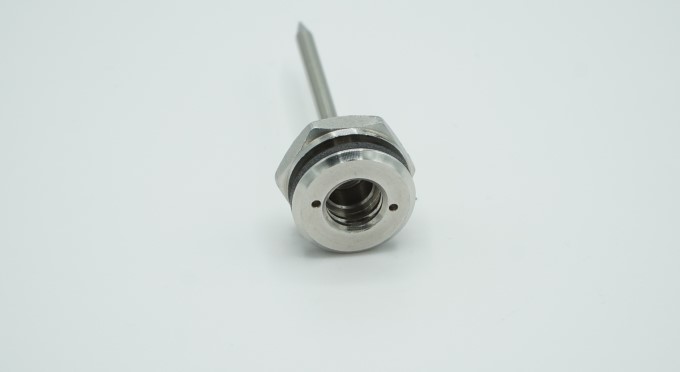

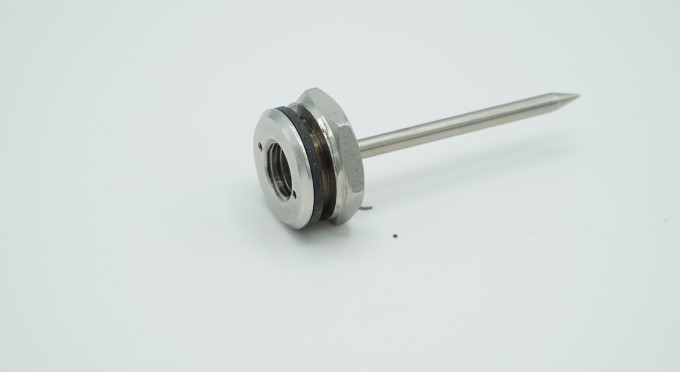

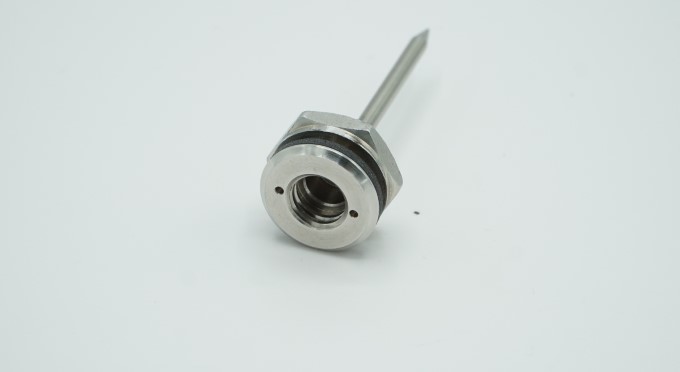

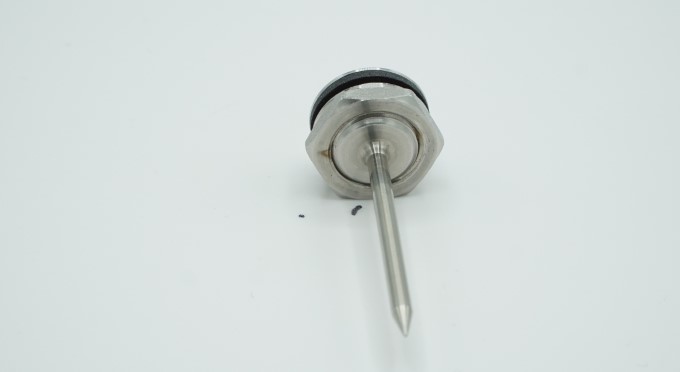

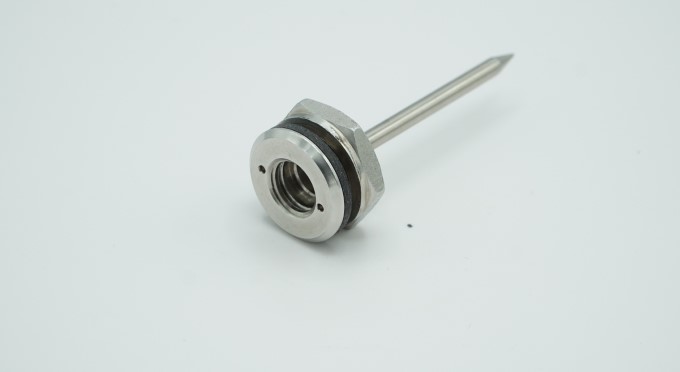

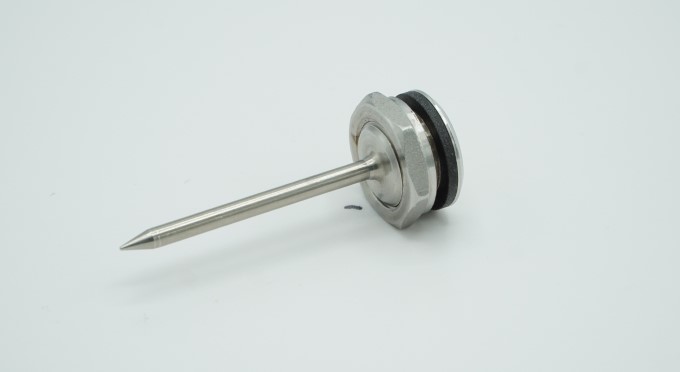

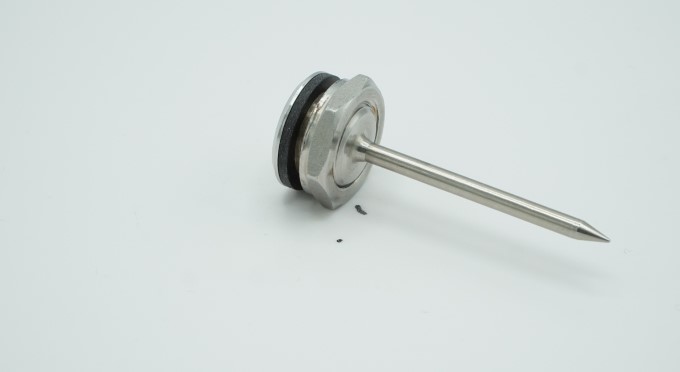

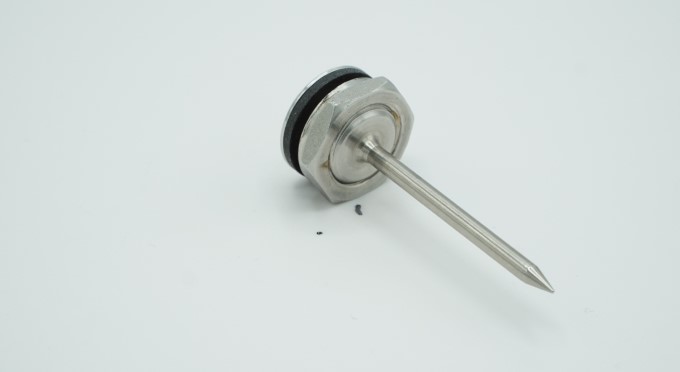

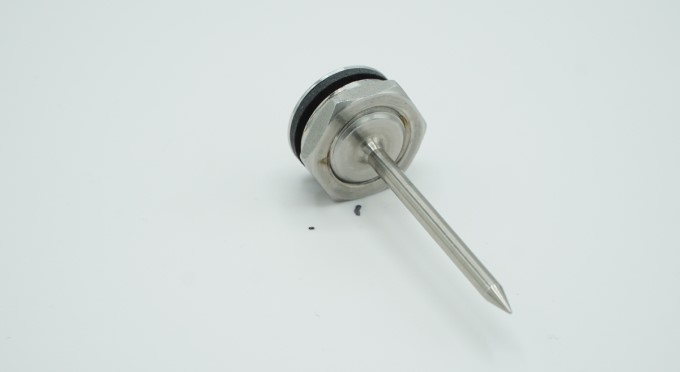

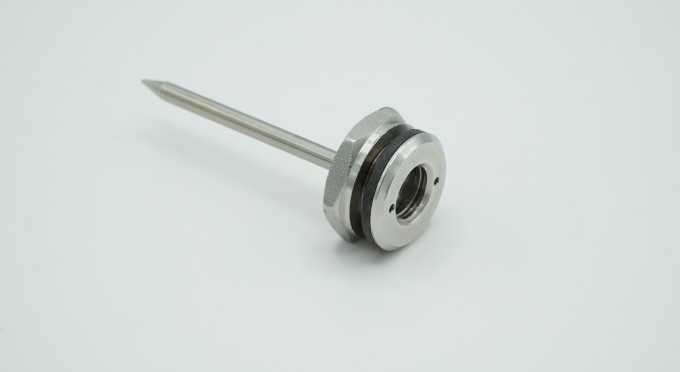

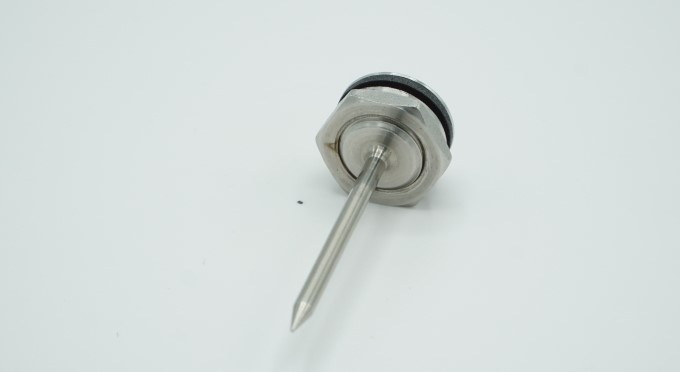

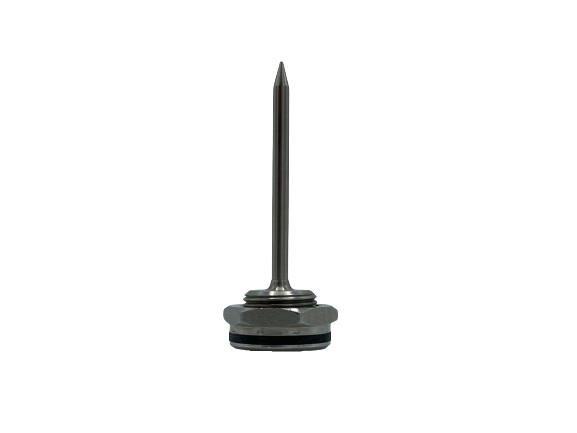

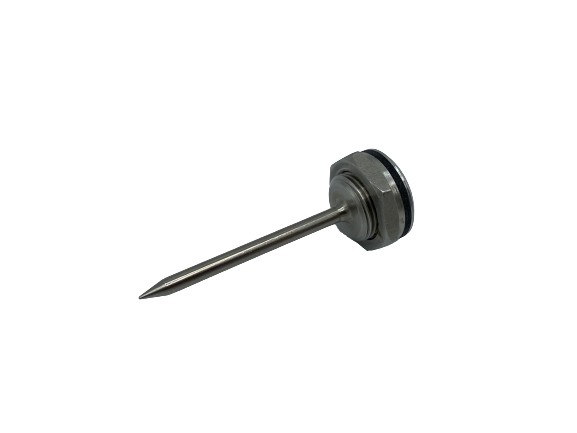

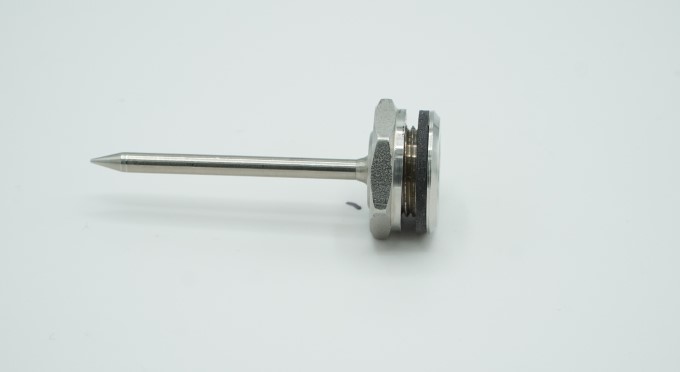

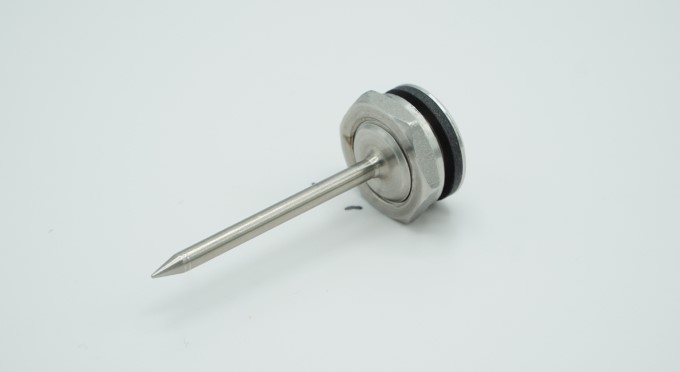

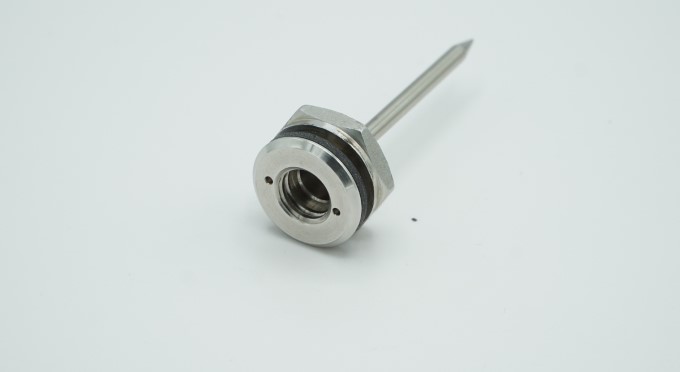

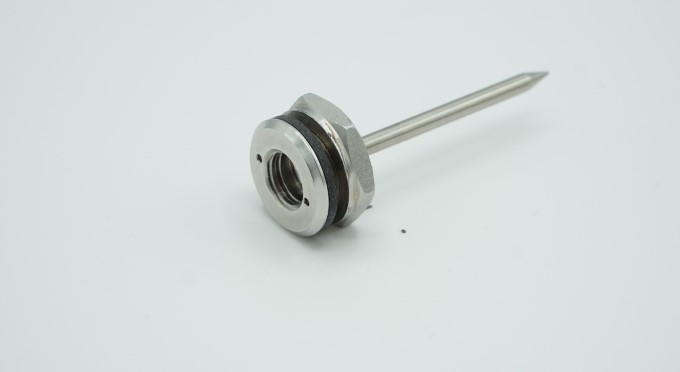

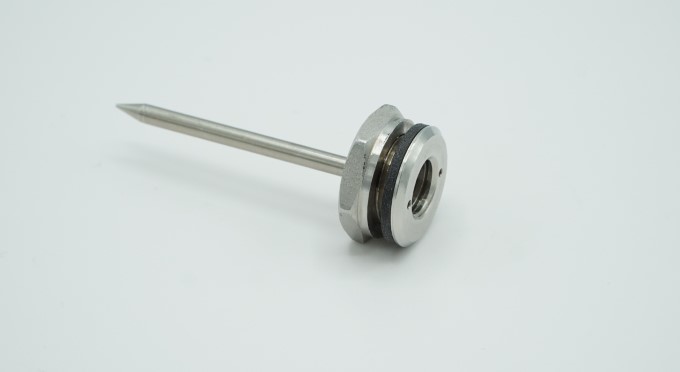

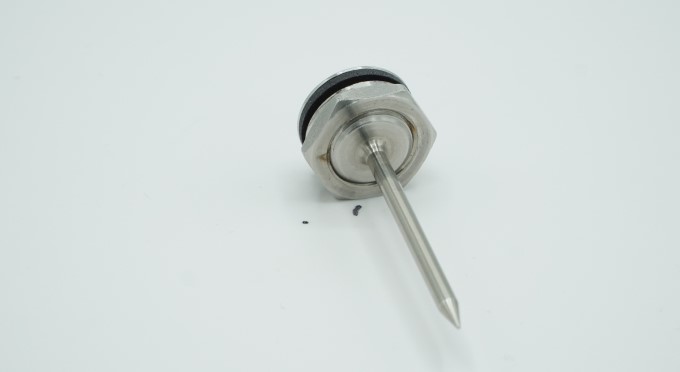

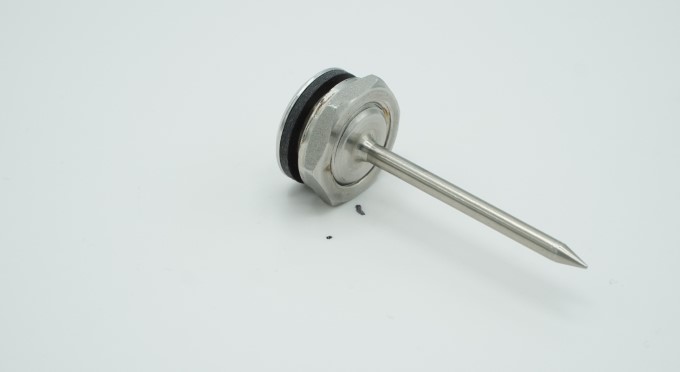

MadgeTech ThermaLock Fittings are stainless steel fittings made specifically for M12 Rigid Probes. The fittings are used when conducting wireless heat penetration tests of foods in cans, jars, and plastic packages. Fittings are installed into a hole in a container of product (created using a Can Punch) and allow a probe (attached to an M12 Logger) to be installed into it. Fittings also allow a HiTemp140-CF Logger (with a fixed probe) to be installed into it.The size of the fitting is based on the size of the container to be tested. When purchased, a ThermaLock fitting includes a body (sheath), a Fitting Gasket, and a nut.



Price
$0.00
each
Linked Title for Section

Video and 360 View

ThermaLock Fitting Video
0%
Linked Title for Section

Pictures

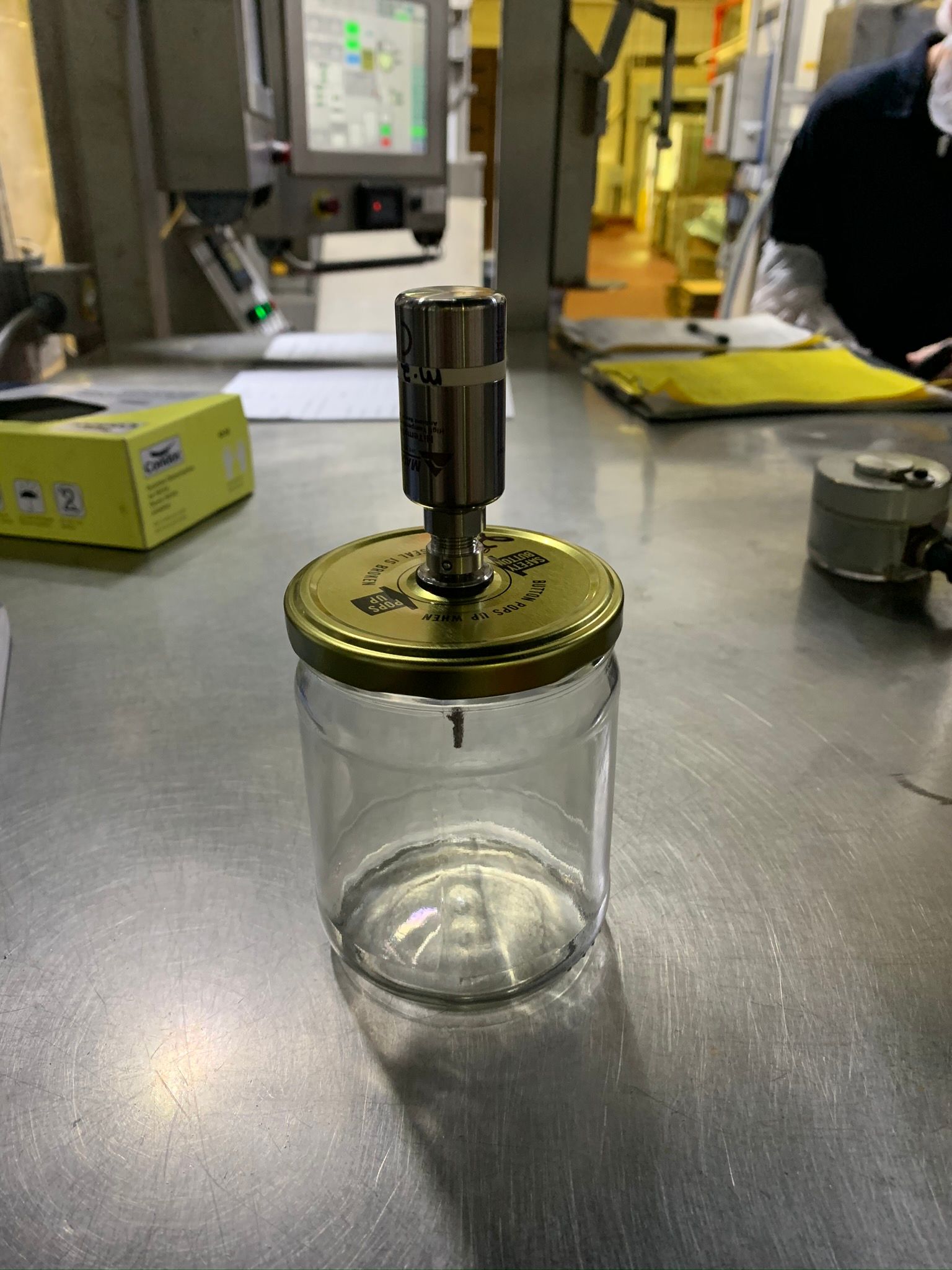

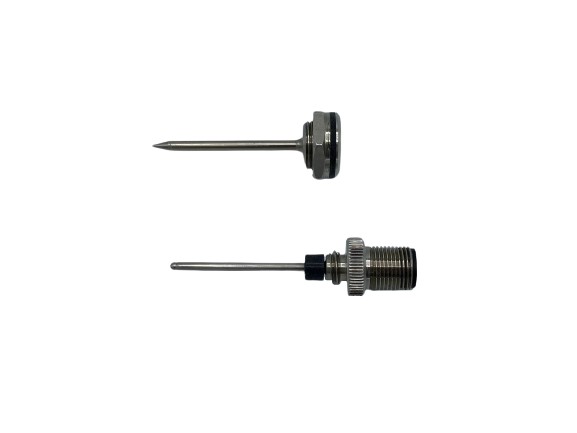

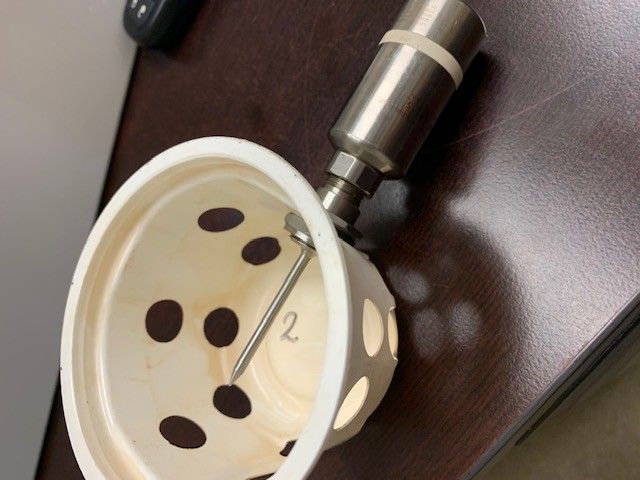

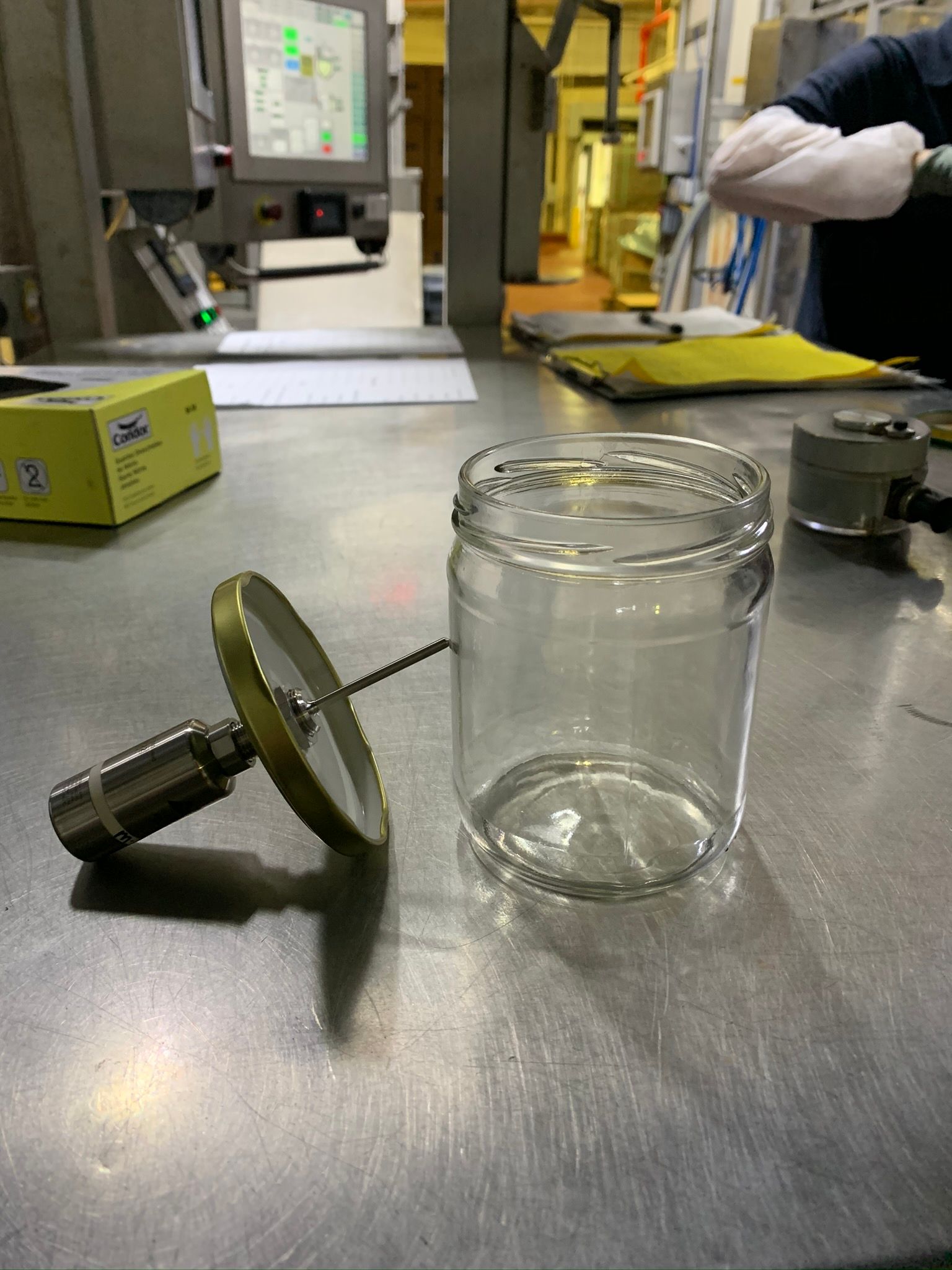

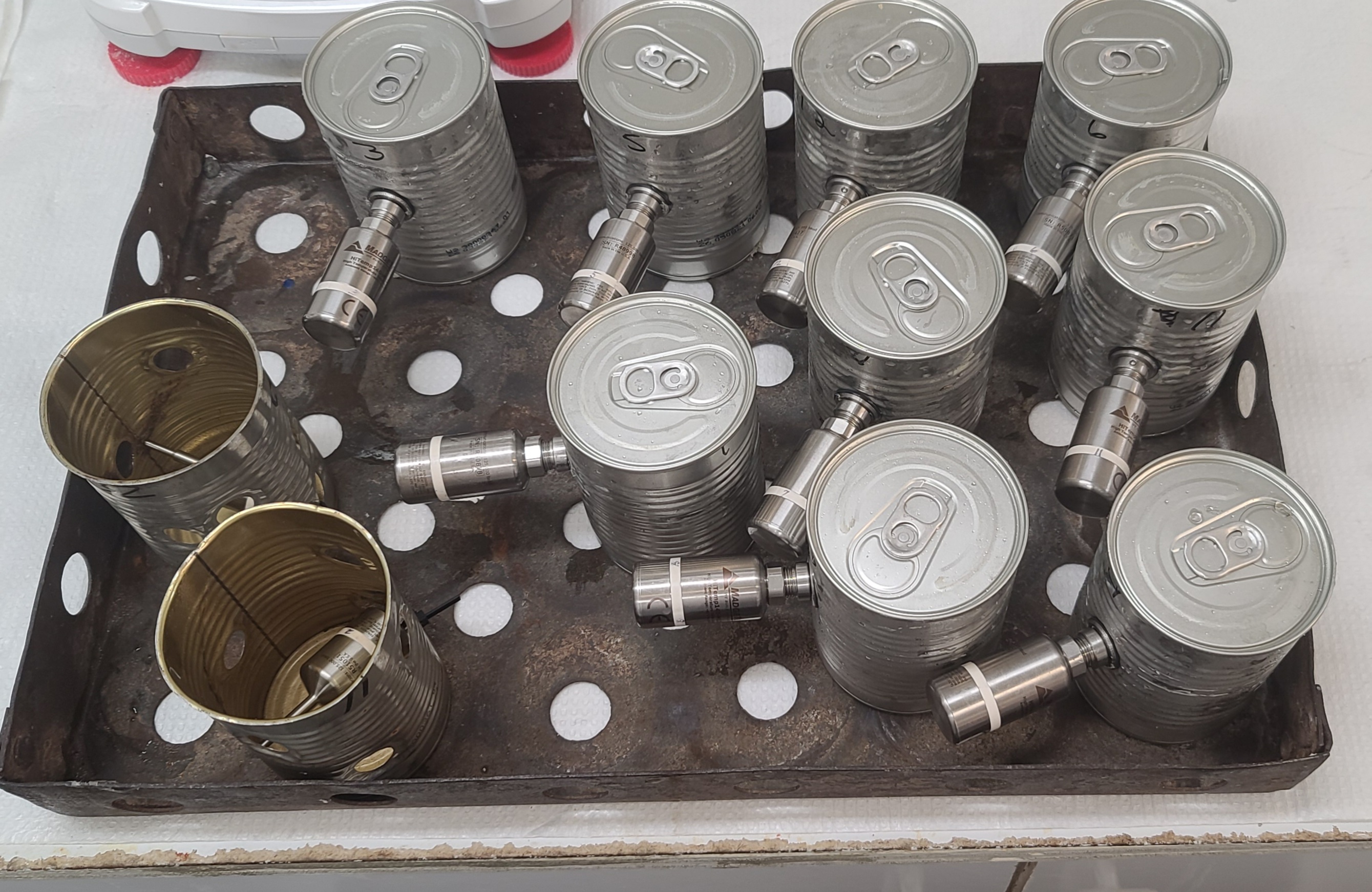

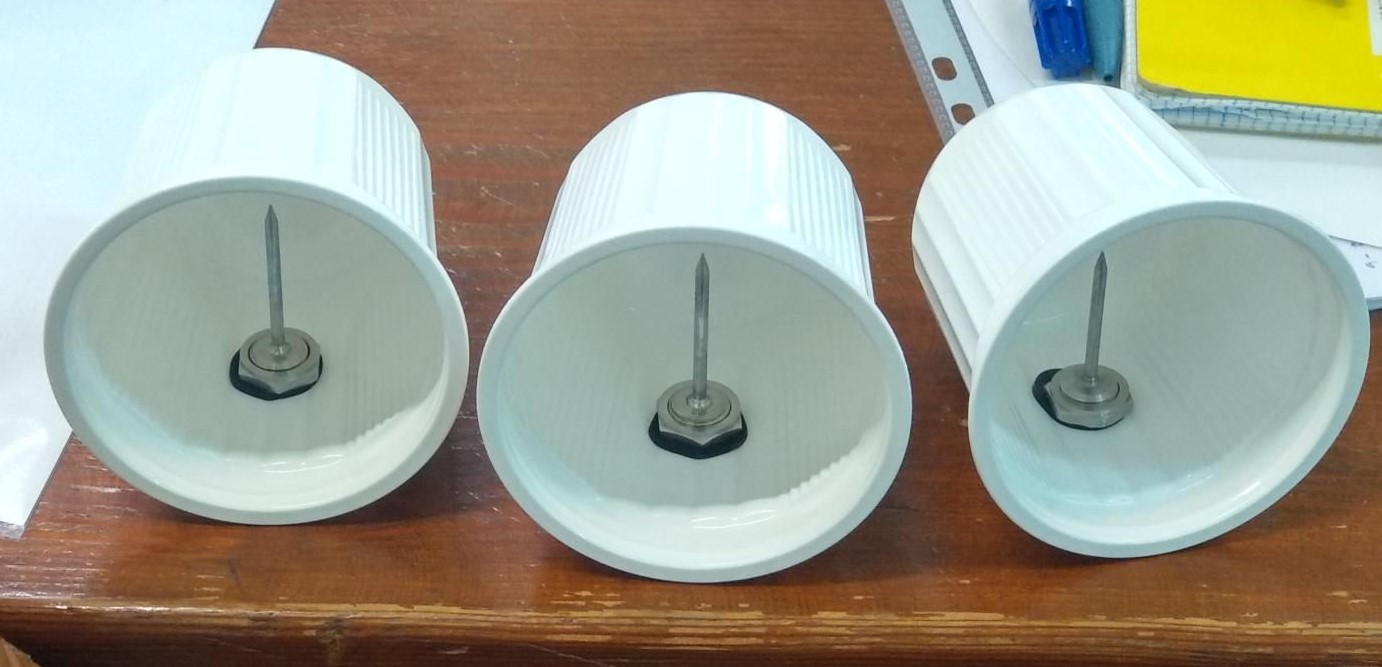

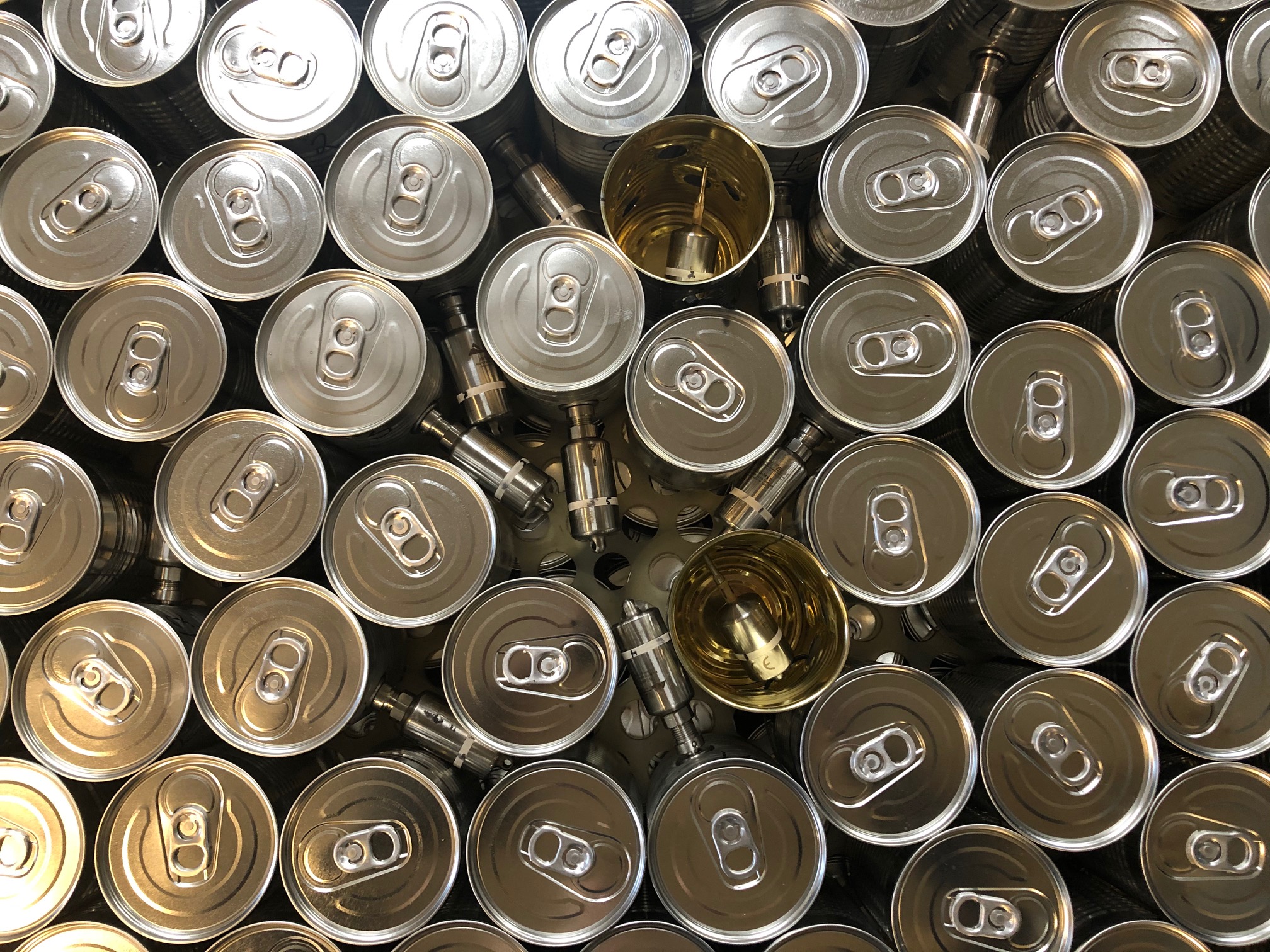

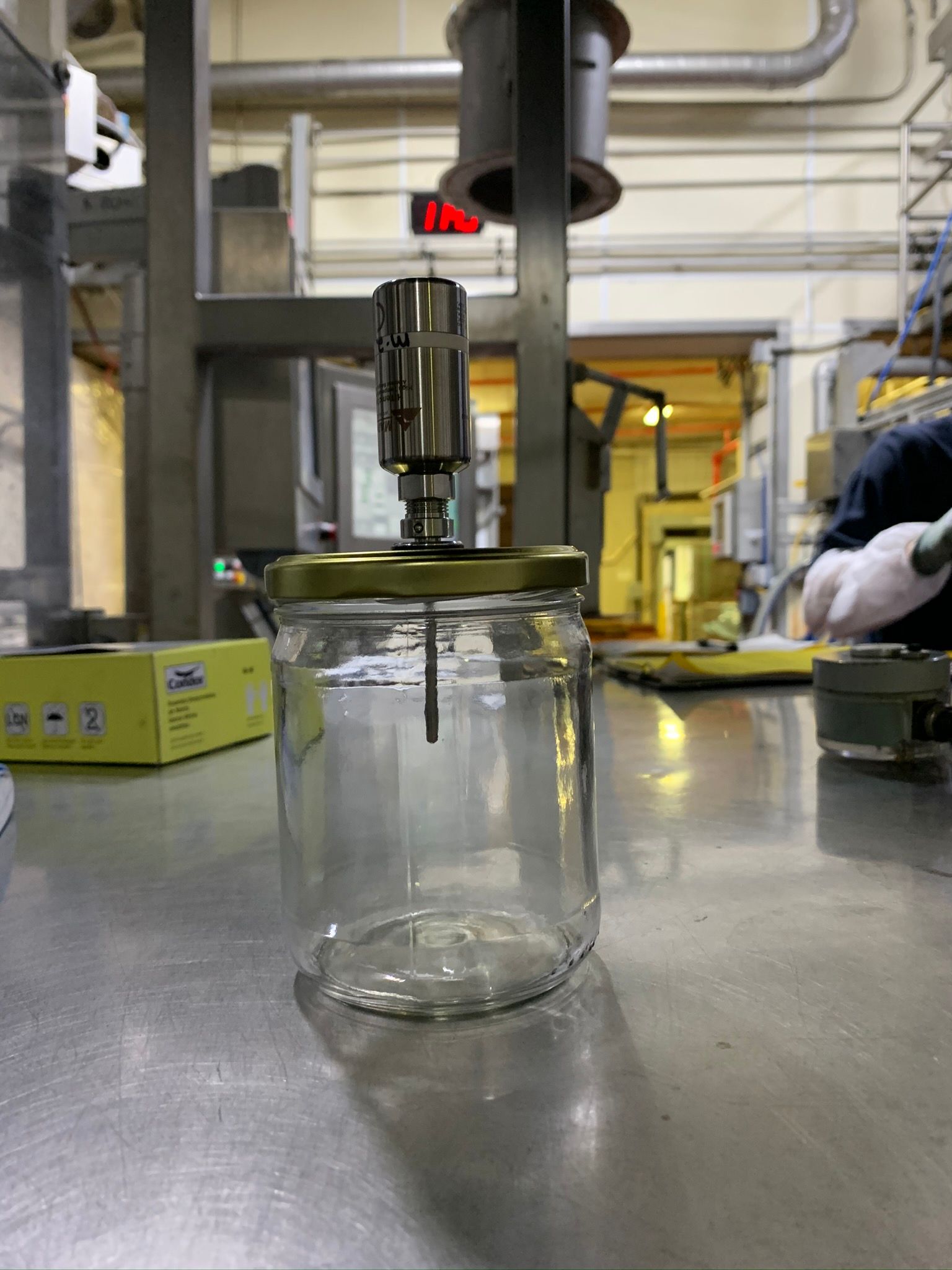

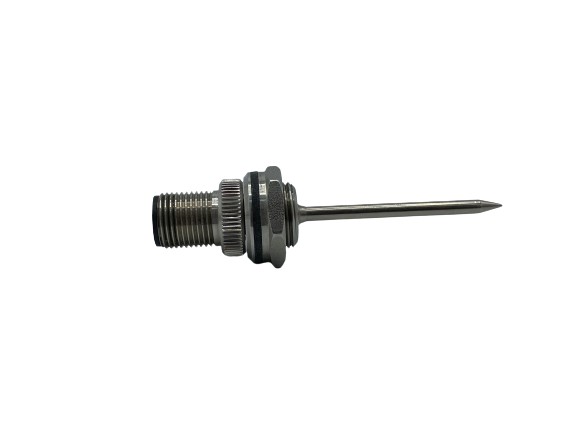

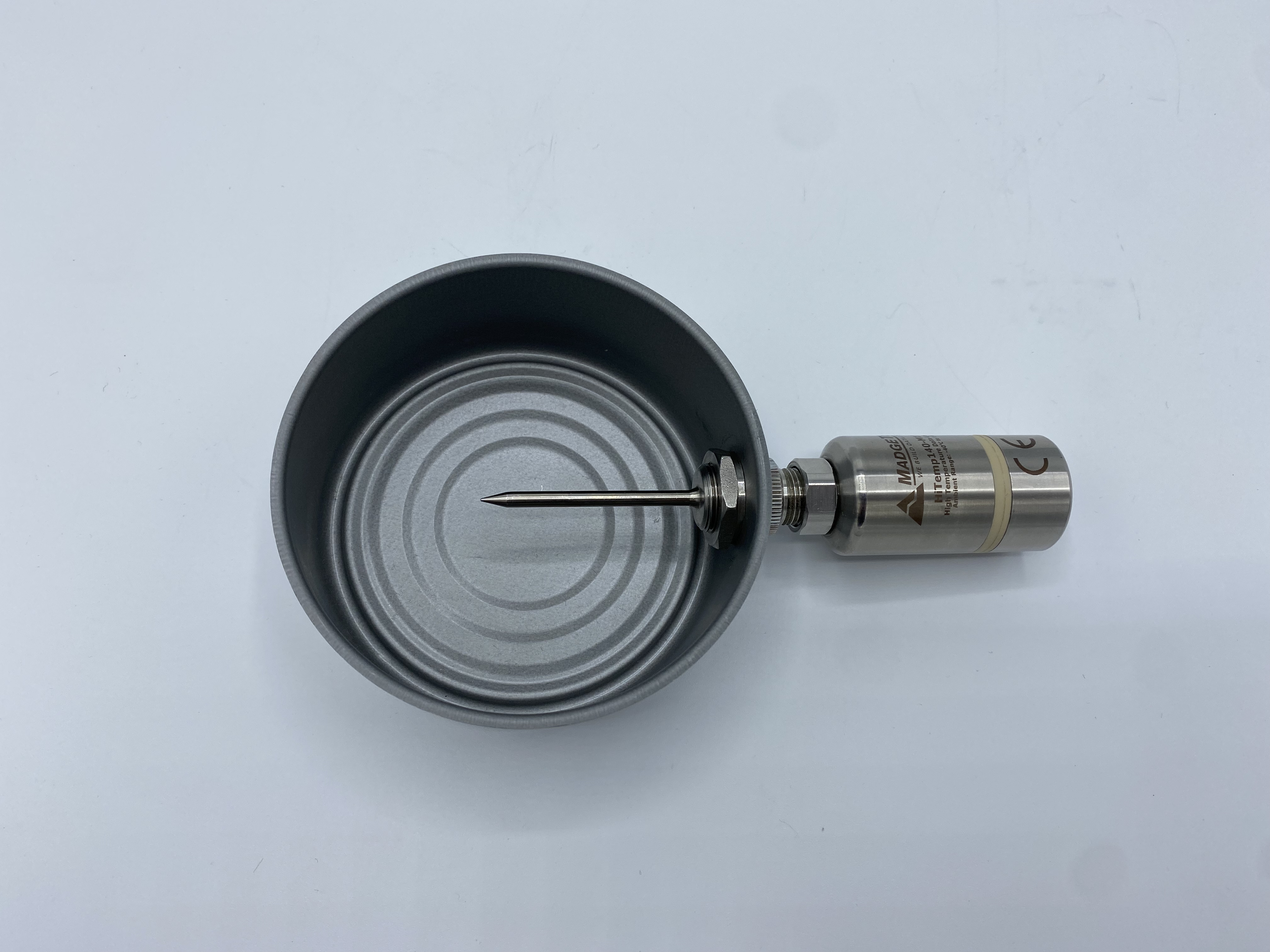

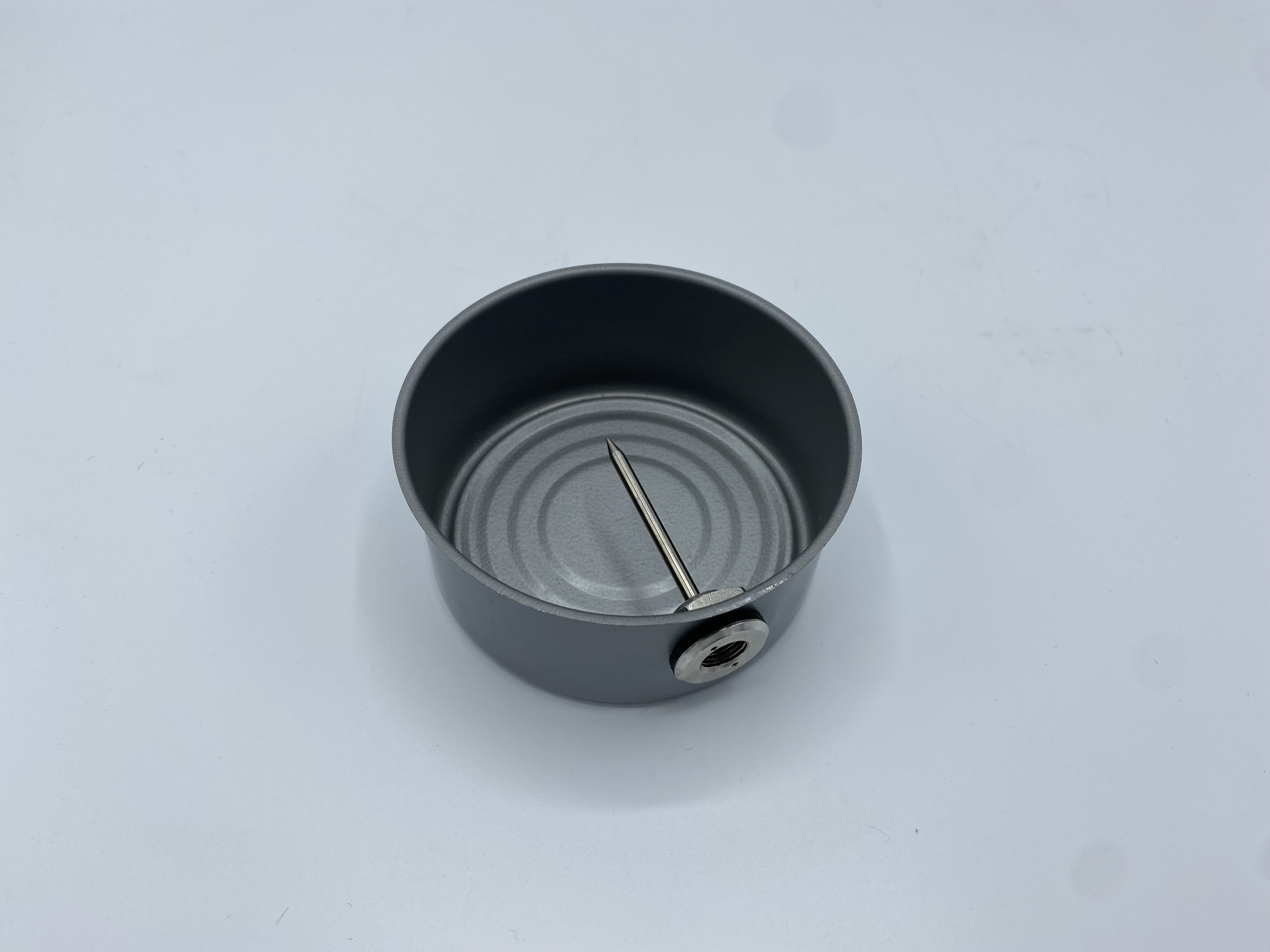

ThermaLock Fittings are installed into rigid containers such as metal cans, glass jars/bottles, plastic cups/containers, and recart packages. M12 Rigid Probes attached to M12 Dataloggers are installed into the fittings.

Linked Title for Section

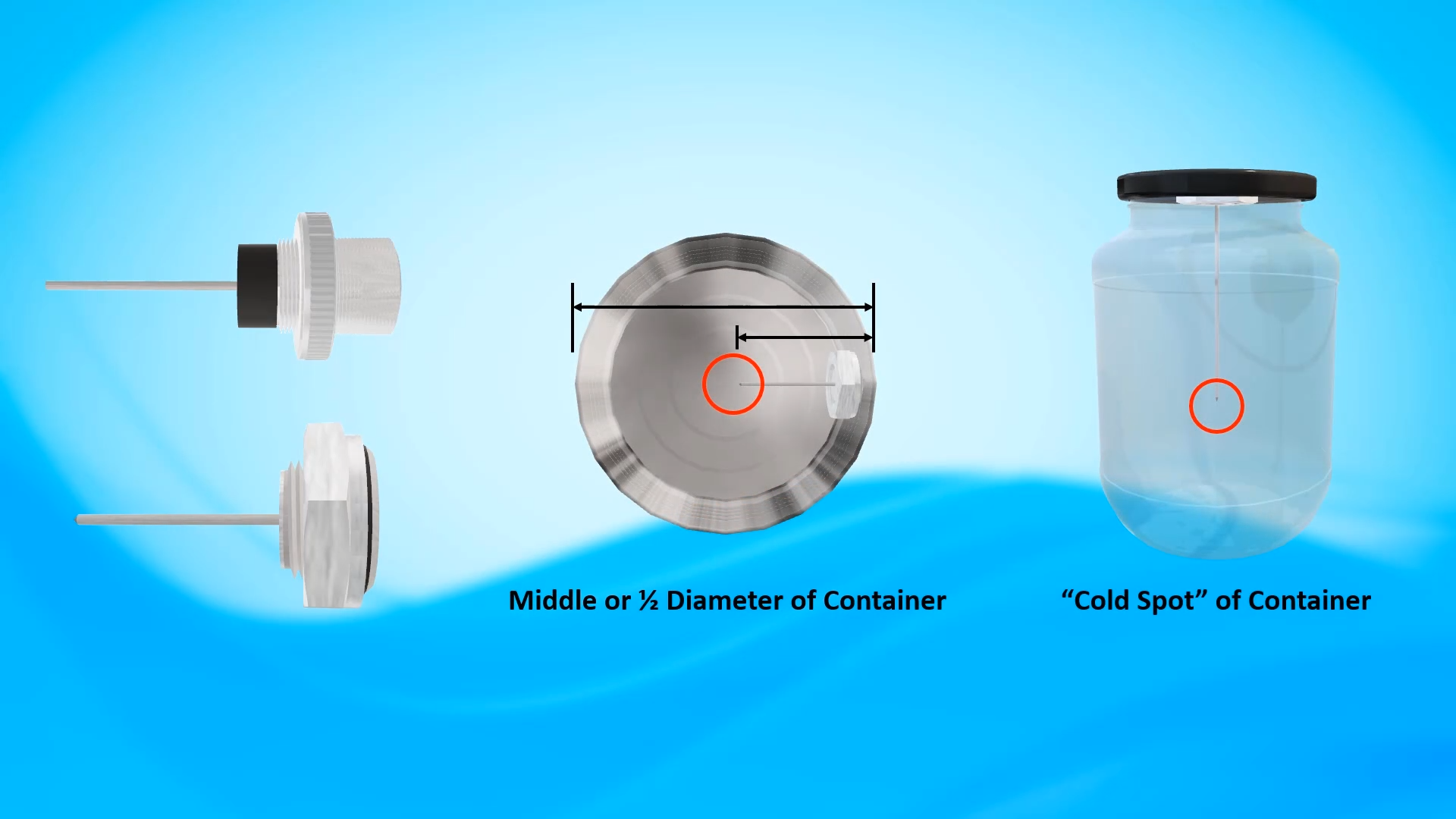

Determining Fitting Length

The length of a ThermaLock Fitting depends on the size of the container you will be testing. For cans, plastic cups, and recart packages, the fitting should be sized to reach the middle of the container. For glass jars, the fitting should be sized so the tip is at the cold spot of the container.
