Pouch Receptacle Gaskets

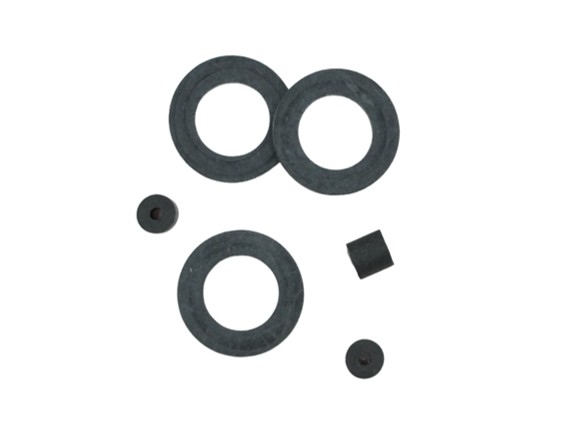

There are four different types of pouch receptacle gaskets available for purchase. The Washer-Type Pouch Gasket (#C26) is used for the C5.1 and the C5.2 Pouch Receptacle to provide a seal and cushion for the receptacle when it is installed into a pouch. The Packing-Type Pouch Gasket (#C27) allows for a Pouch Thermocouple to be securely installed into a C5.2 Pouch Receptacle. The Pouch Receptacle O-Ring Gasket (#C5.1OR) is used to provide a seal and cushion for a C5.1M or C5.1ML Pouch Receptacle when installed into a pouch. The Pouch Spout Receptacle O-Ring Gasket (#PCH-SPT-REC-OR) is used to provide a seal and cushion for a Pouch Spout Receptacle.

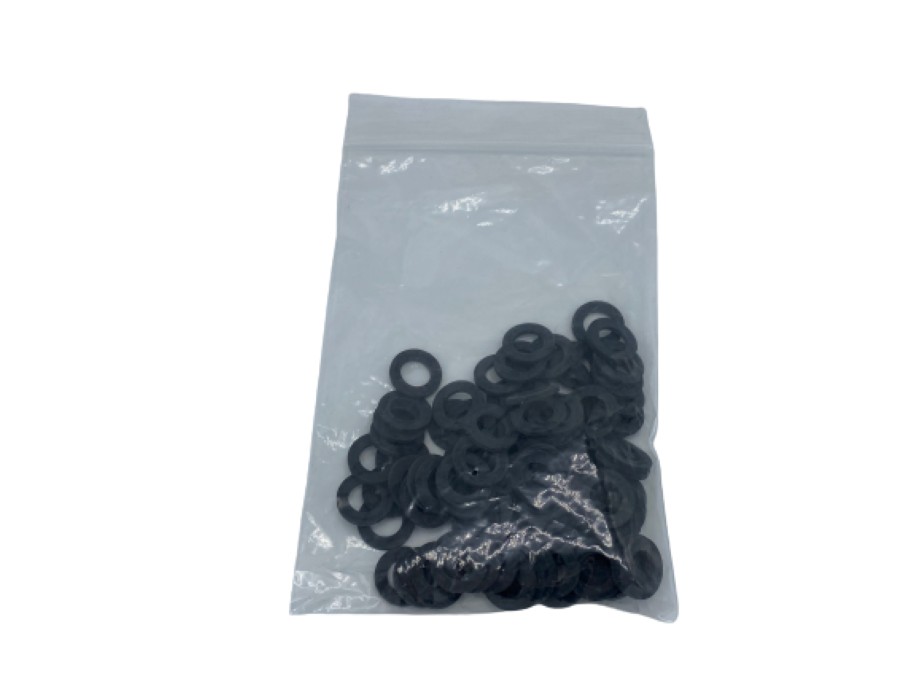

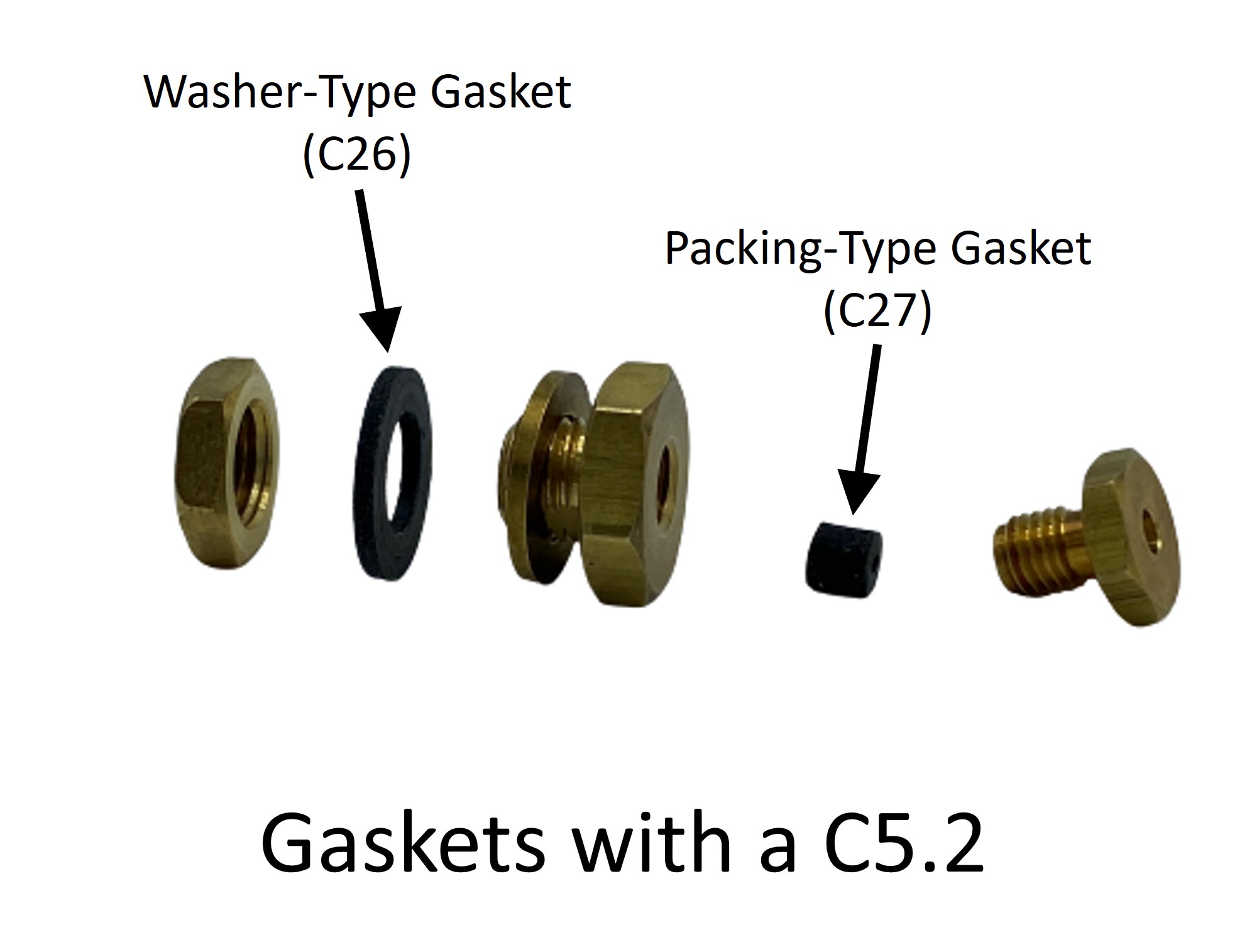

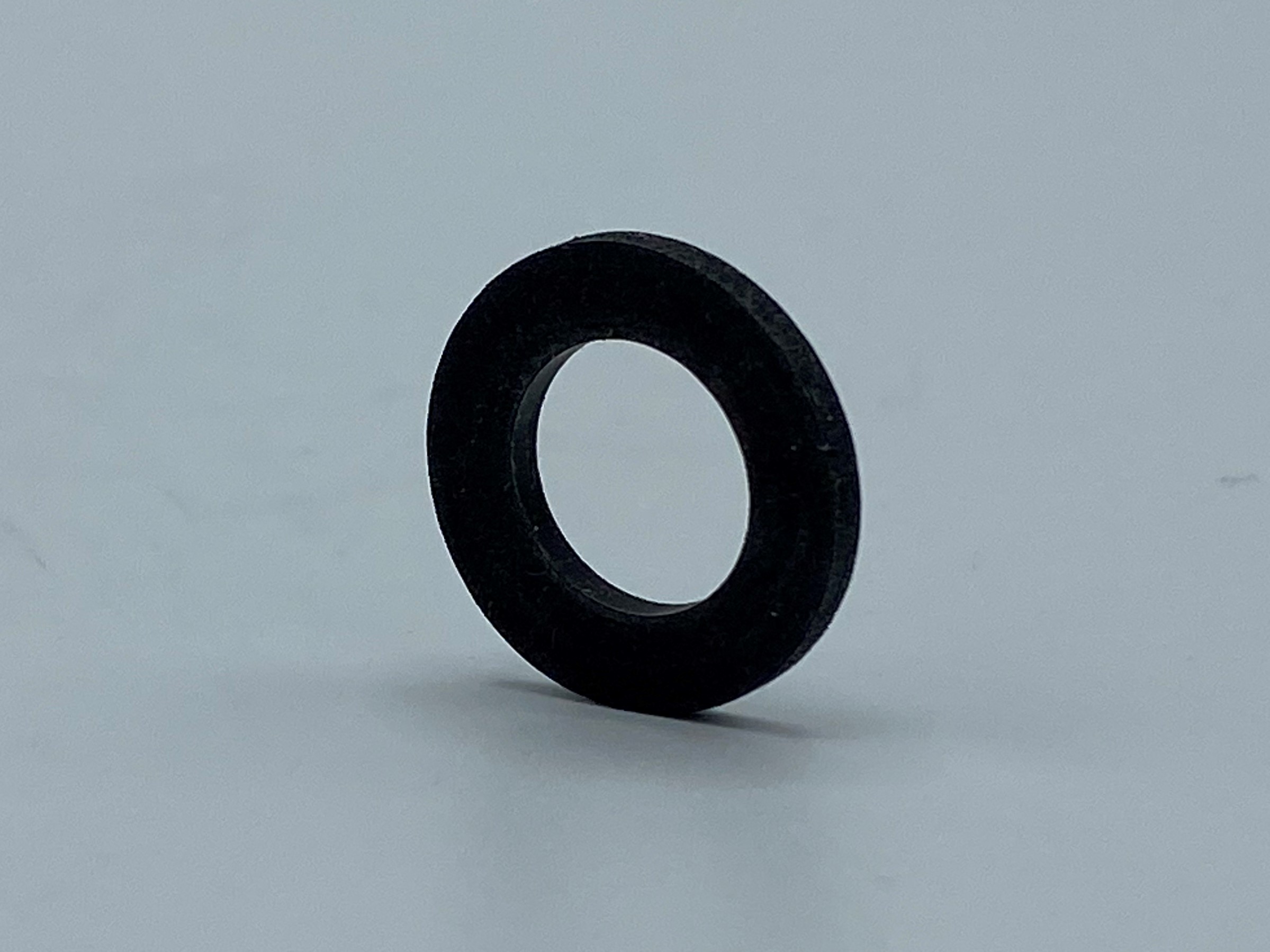

Washer-Type Gasket
The Washer-Type Pouch Gasket (#C26) is used for the C5.1 and the C5.2 Pouch Receptacle to provide a seal and cushion for the receptacle when it is installed into a pouch. This gasket is made of rubber and has an inner diameter of 3/8" (9.5 mm) and an outer diameter of 5/8" (15.9 mm).

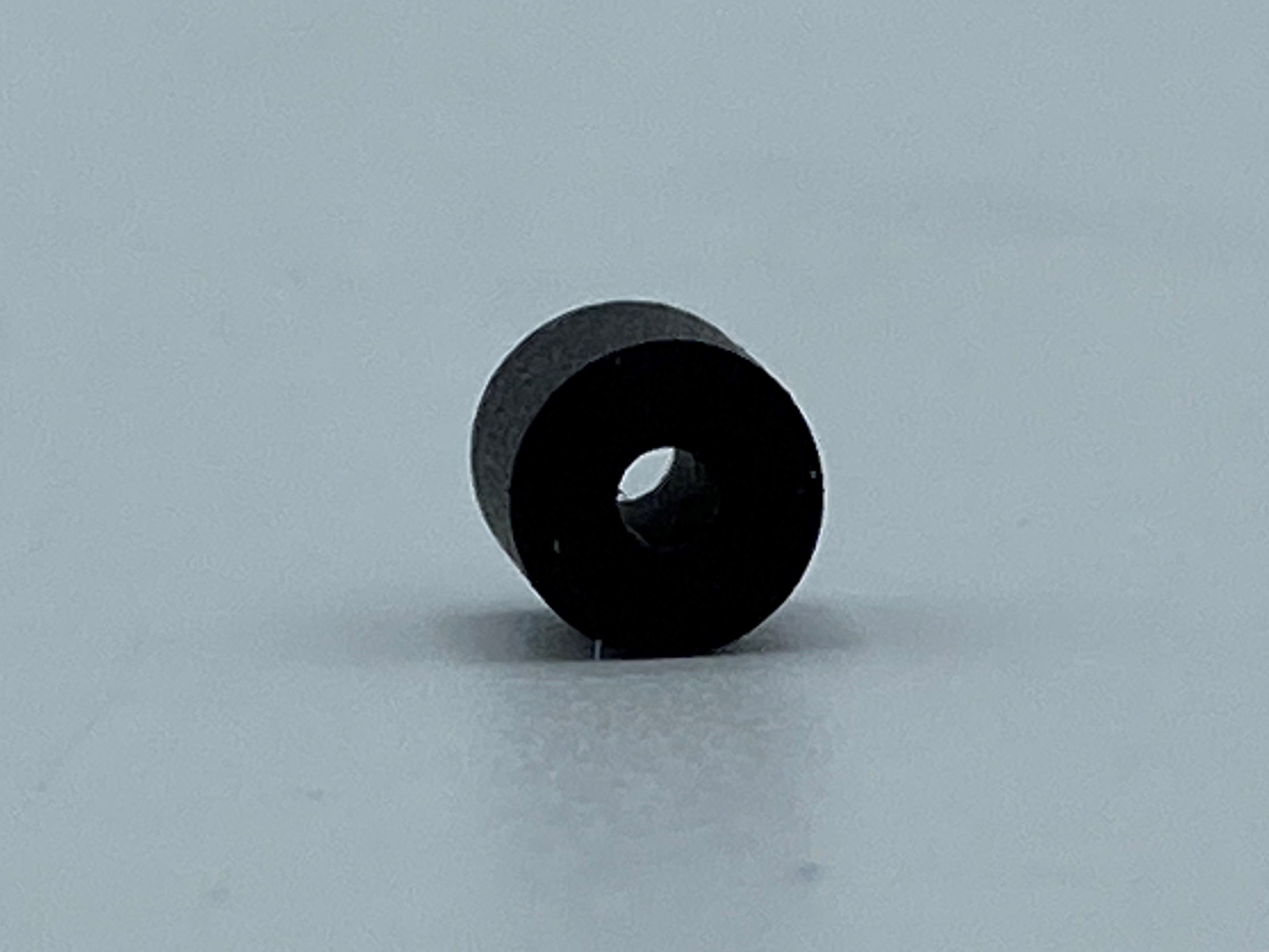

Packing-Type Gasket
The Packing-Type Pouch Gasket (#C27) allows for a Pouch Thermocouple to be securely installed into a C5.2 Pouch Receptacle. This gasket is made of rubber and has an inner diameter of 1/16" (1.6 mm) and an outer diameter of 3/16" (5 mm).

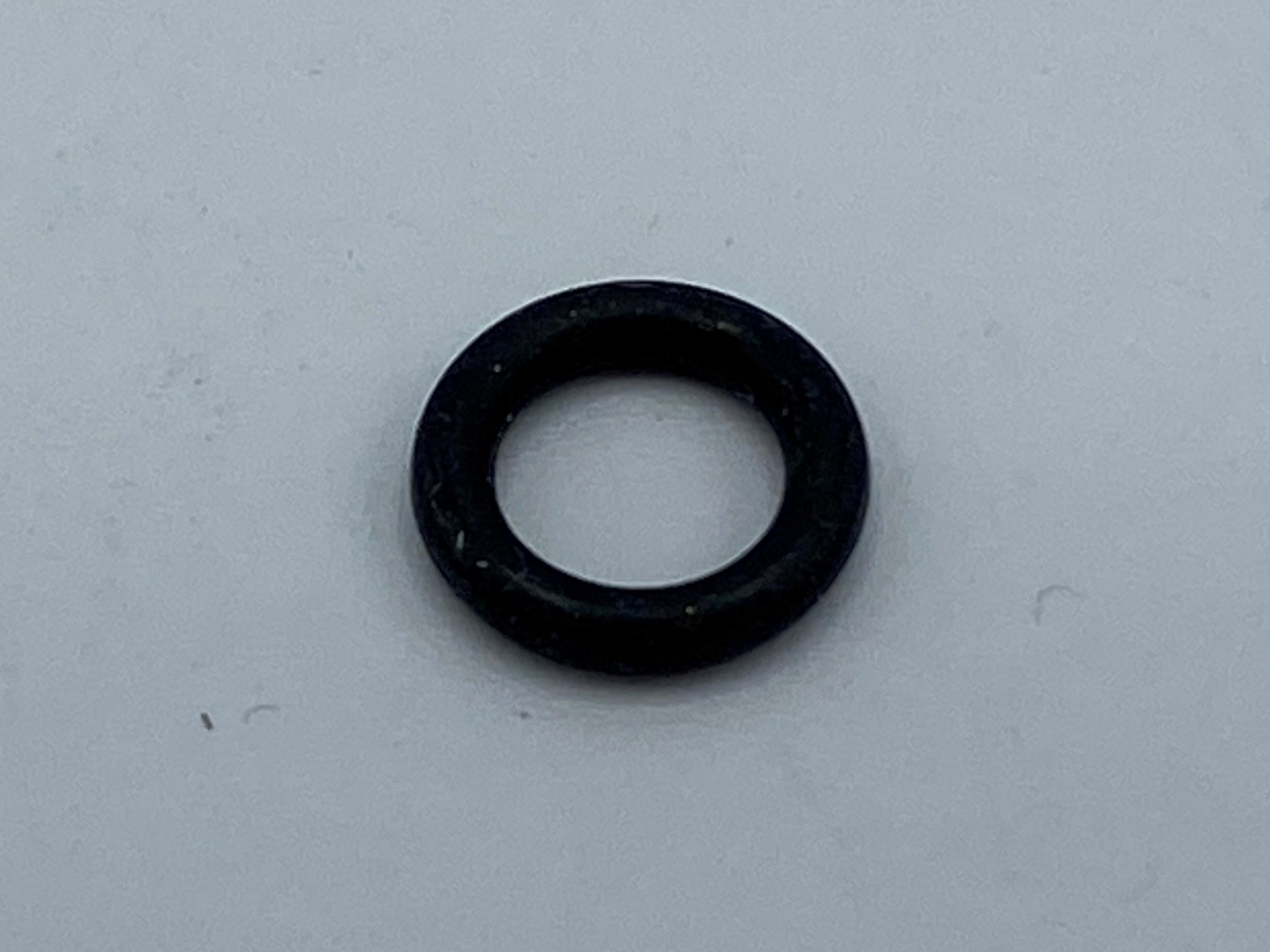

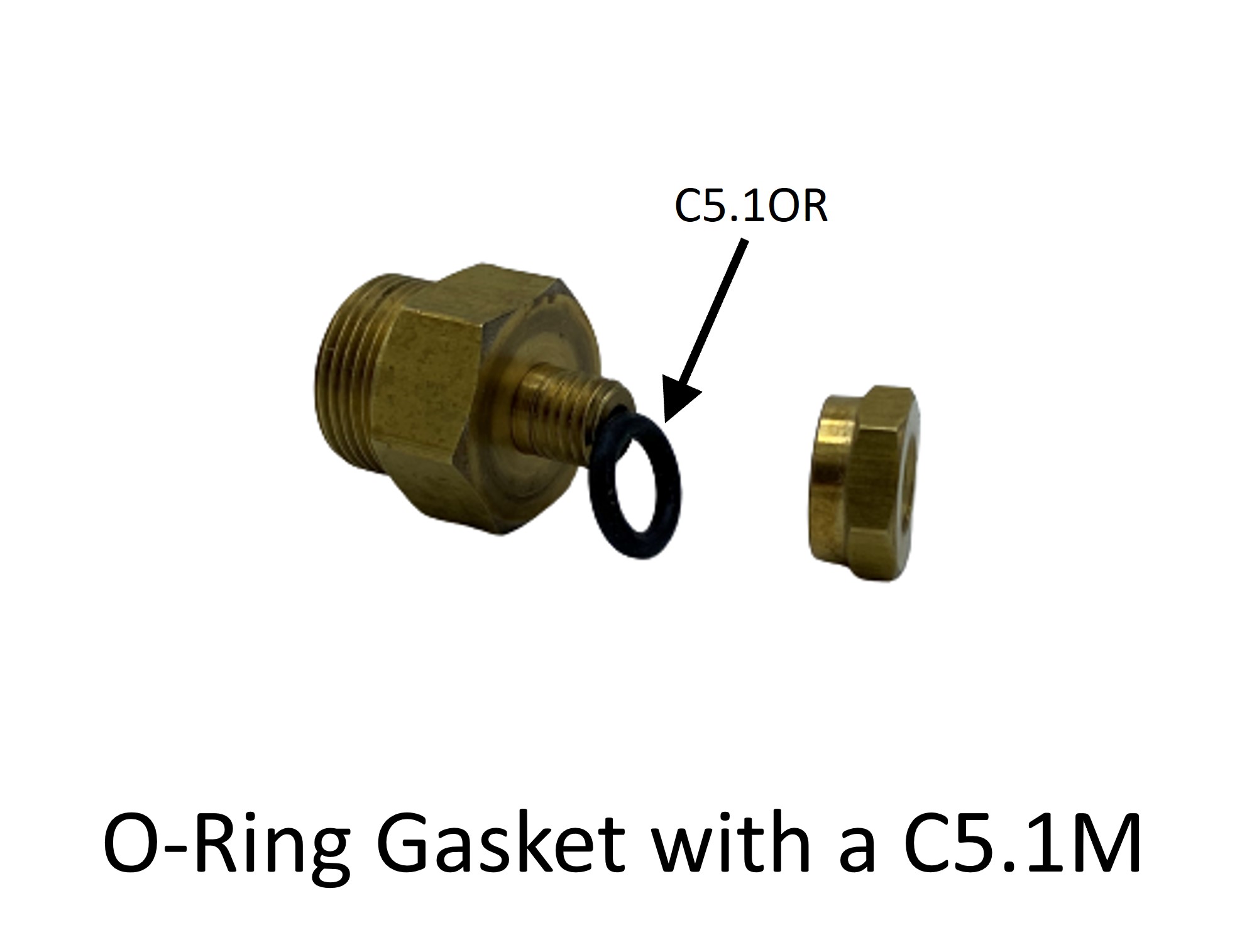

Pouch Receptacle O-Ring Gasket
The Pouch Receptacle O-Ring Gasket (#C5.1OR) is used to provide a seal and cushion for a C5.1M or C5.1ML Pouch Receptacle when installed into a pouch. This gasket is made of rubber and has an inner diameter of 1/4" (6 mm) and an outer diameter of 3/8" (9.5 mm).

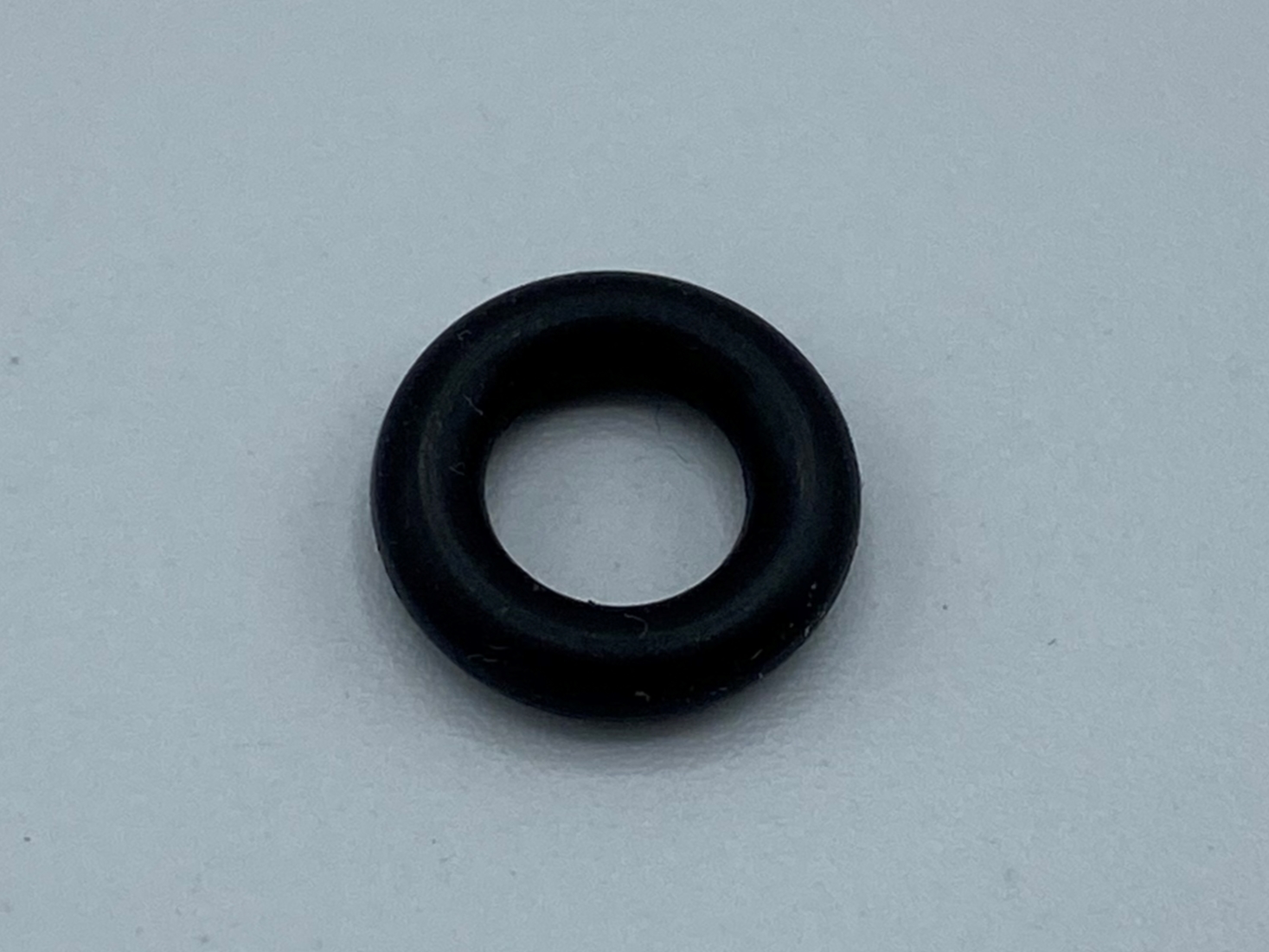

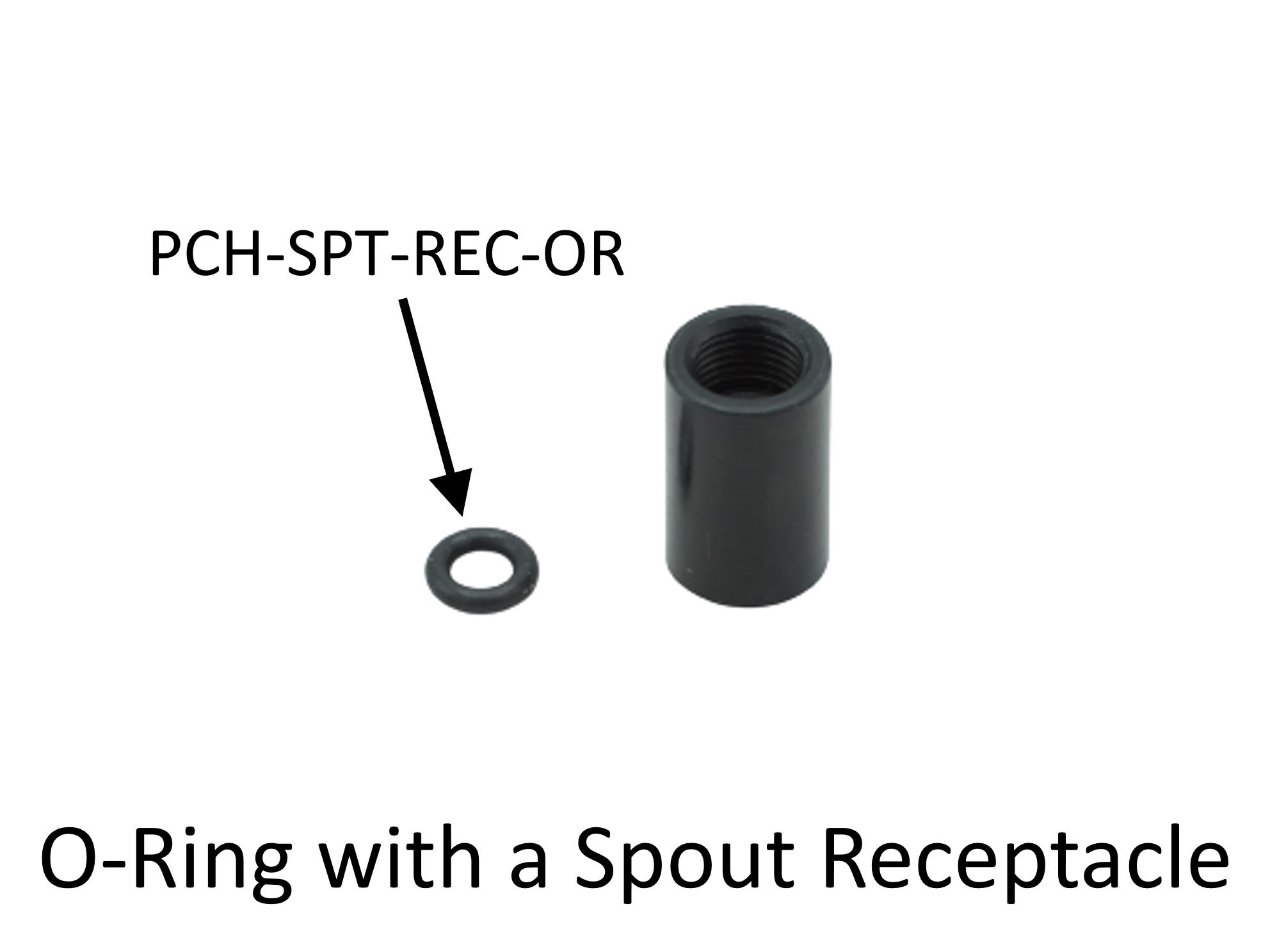

Pouch Spout Receptacle O-Ring Gasket
The Pouch Spout Receptacle O-Ring Gasket (#PCH-SPT-REC-OR) is used to provide a seal and cushion for a Pouch Spout Receptacle when installed into a pouch that has a spout on its end. This gasket is made of rubber and has an inner diameter of 1/4" (6 mm) and an outer diameter of 7/16" (11.1 mm).
