CALPlex Datalogger

CALPlex Datalogger

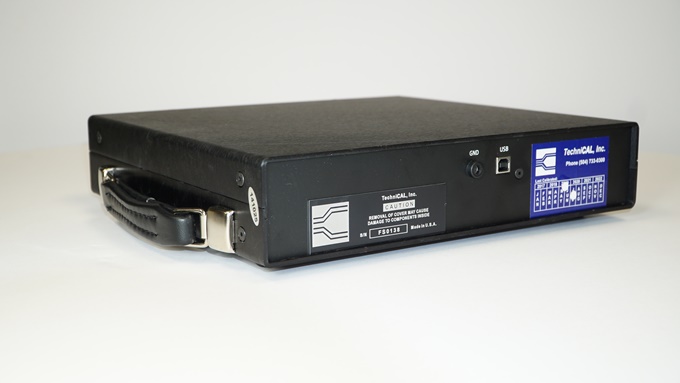

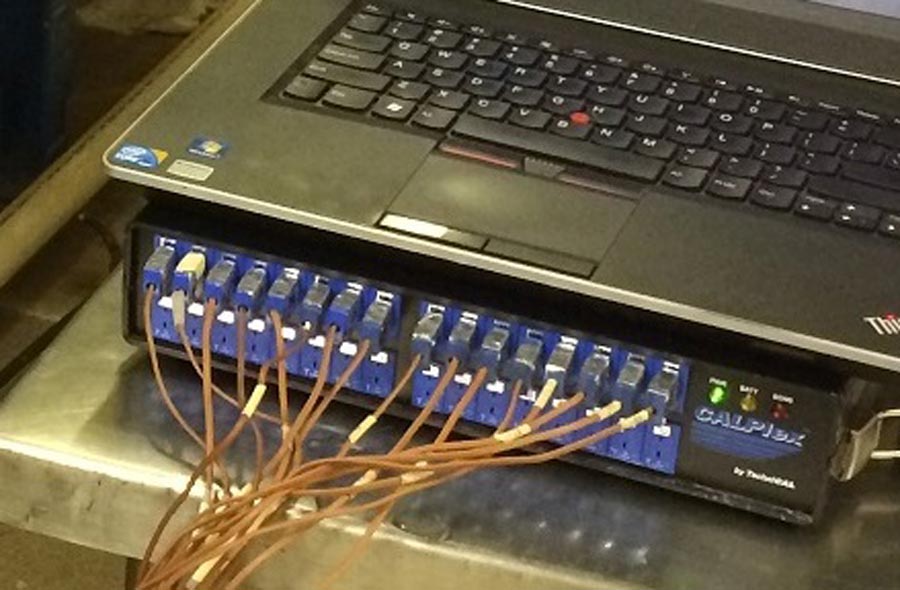

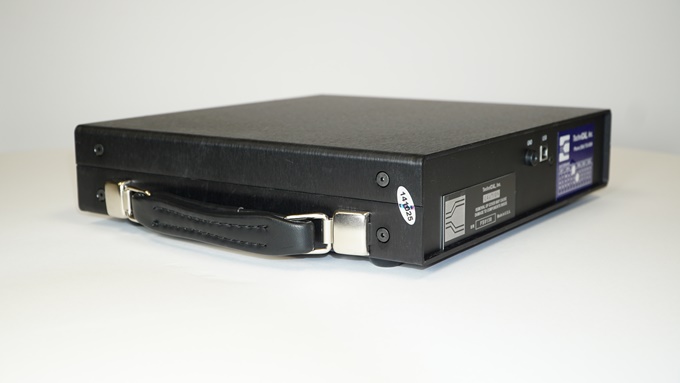

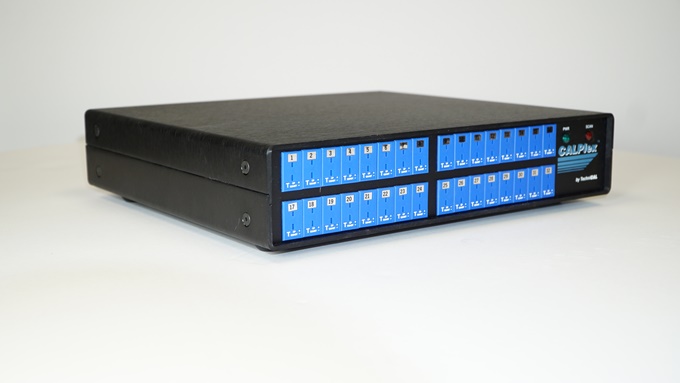

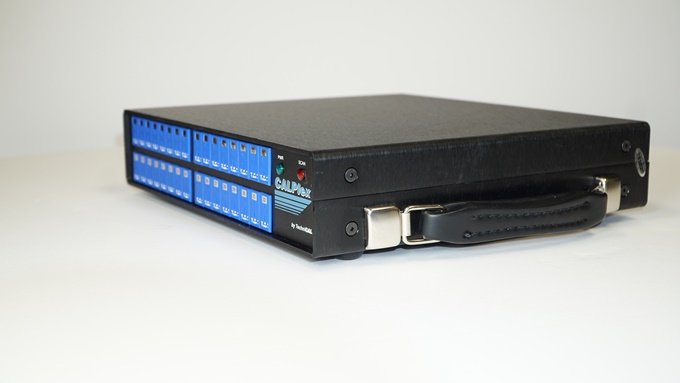

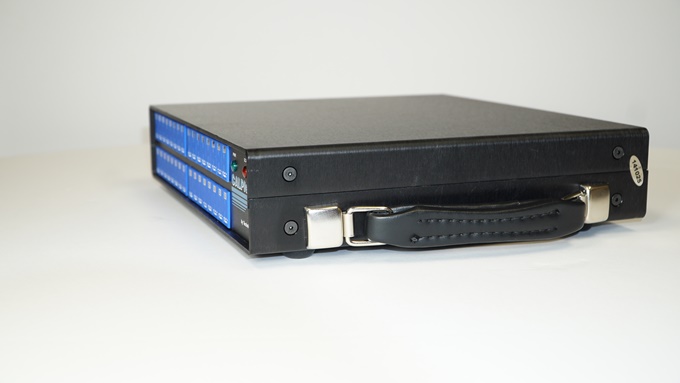

The standard CALPlex unit is a portable and light-weight datalogger designed to withstand harsh plant environments. The size of CALPlex is designed for a laptop computer (with CALSoft software) to sit on top. Thermocouple wires (Heat Penetration Wires or Temperature Distribution Wires) connect directly to the Standard CALPlex and a USB cable connects CALPlex directly to your laptop with CALSoft installed.



NOTE: The Standard CALPlex is temporarily out of stock. Please contact [email protected] for more information.

Linked Title for Section

Video and 360 View

CALPlex Video
0%

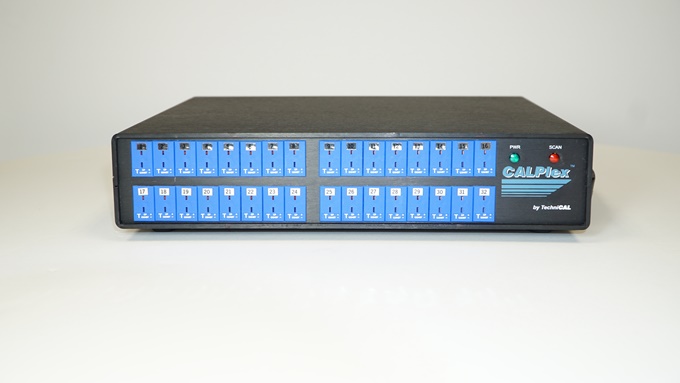

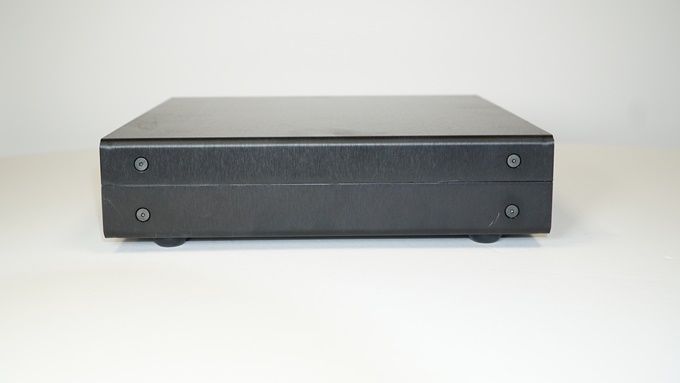

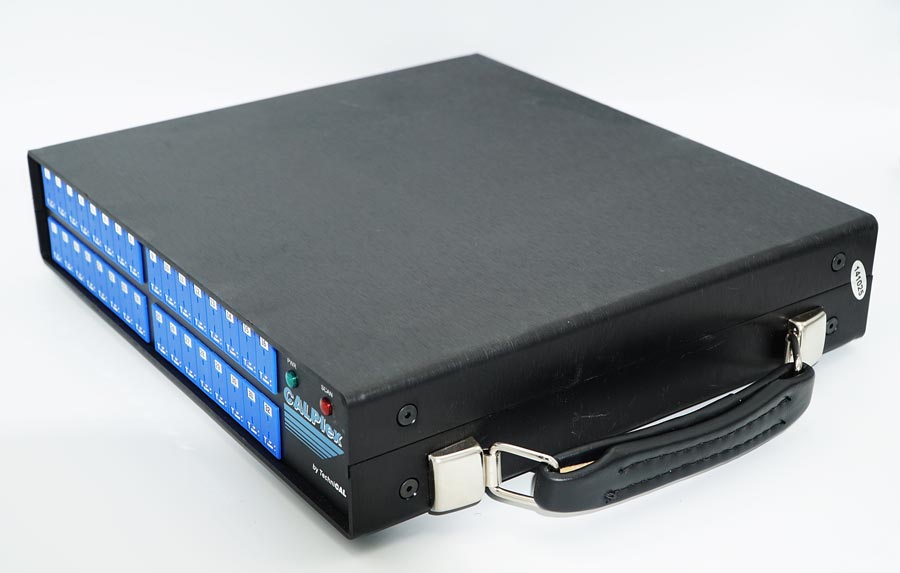

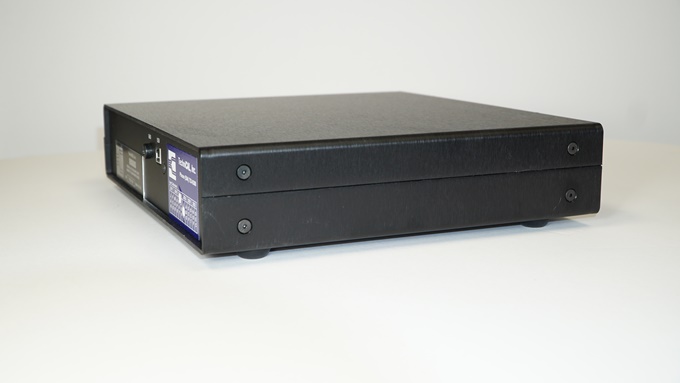

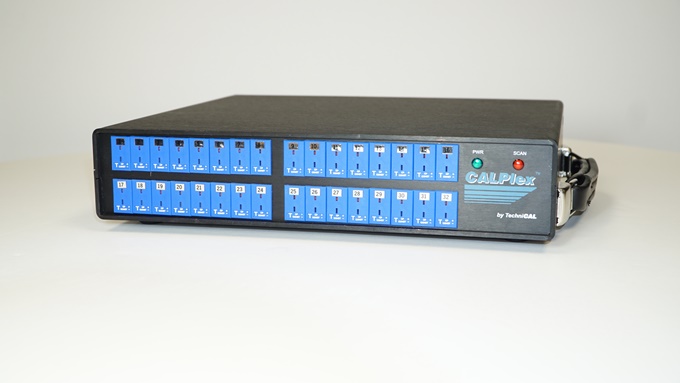

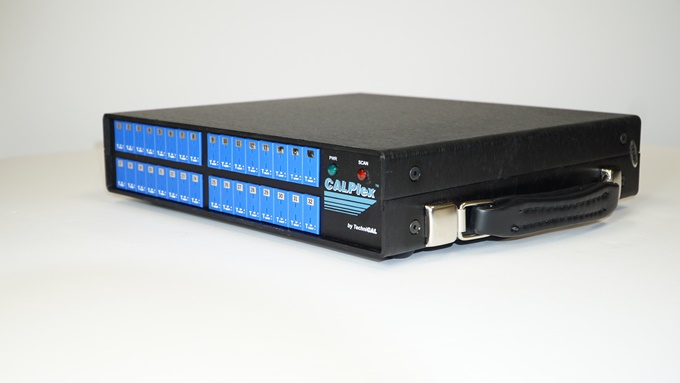

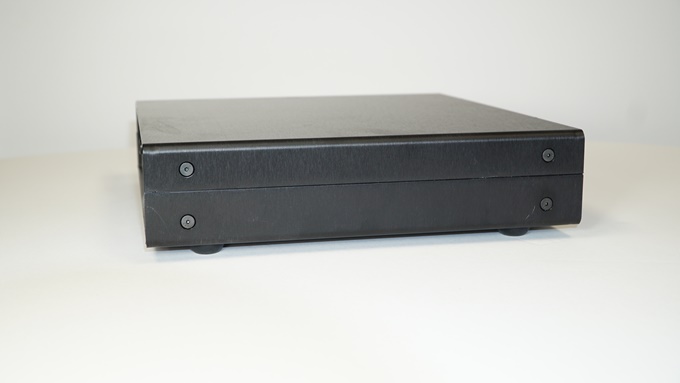

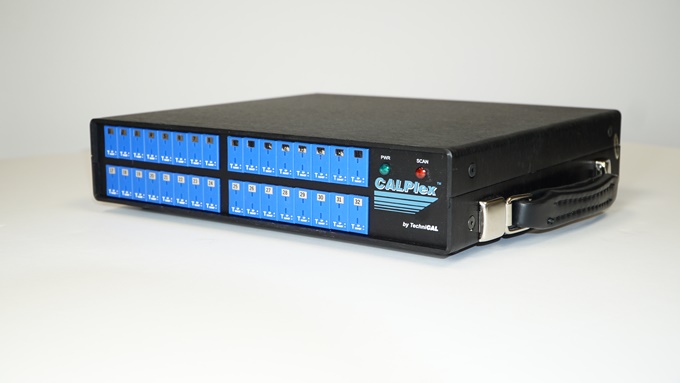

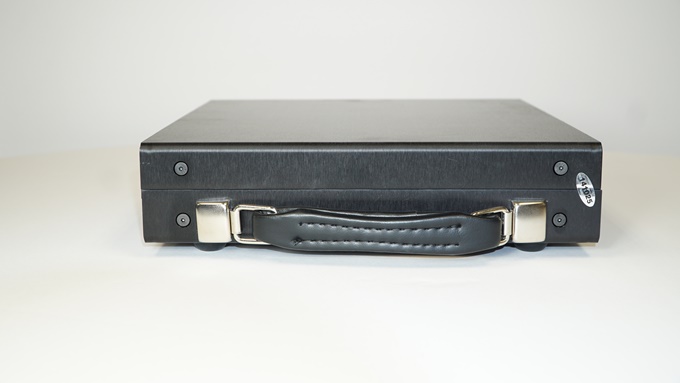

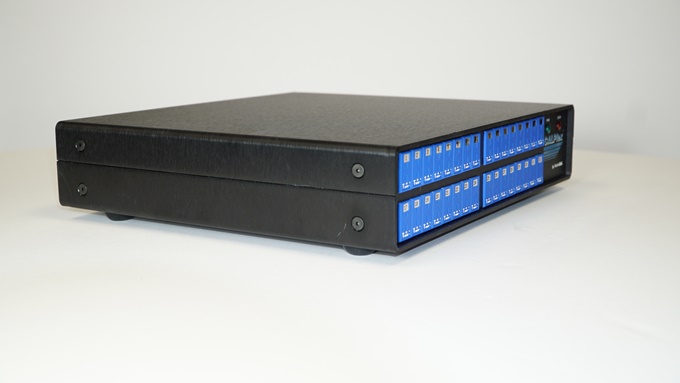

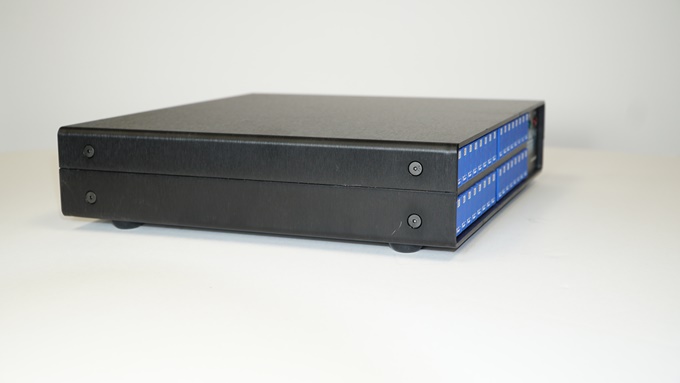

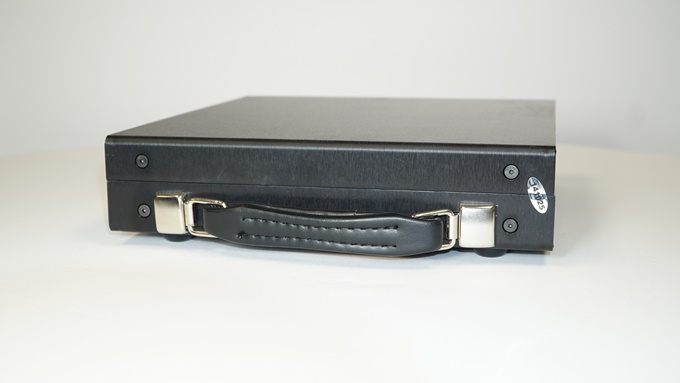

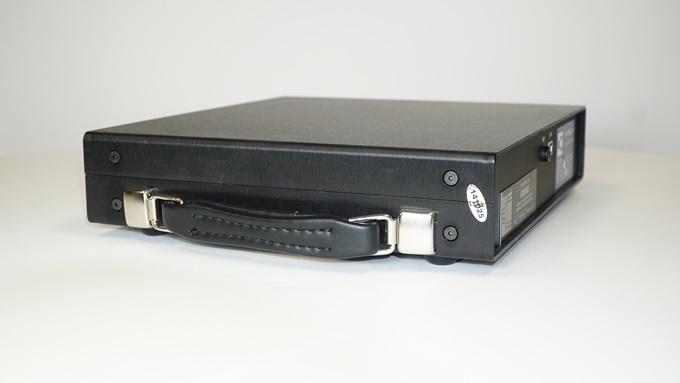

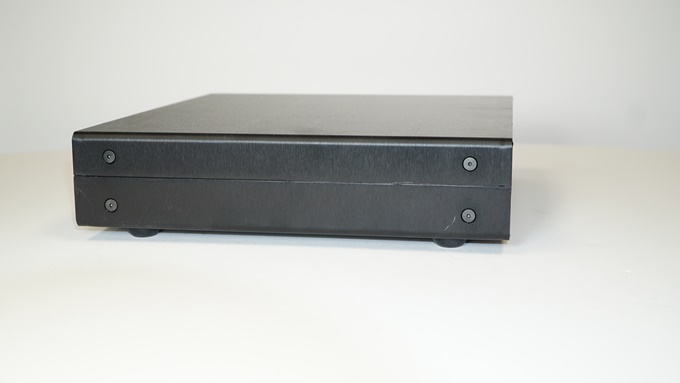

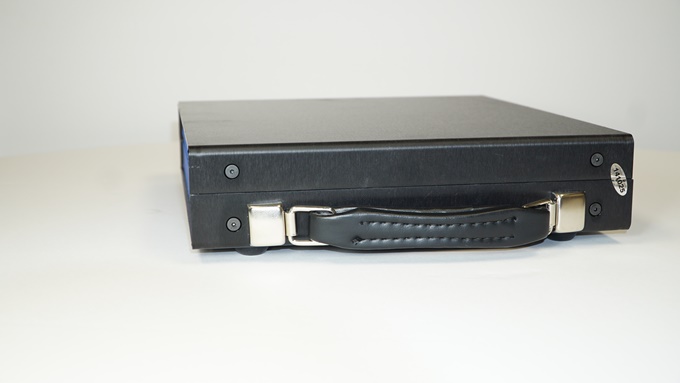

CALPlex Datalogger
(Click and drag to rotate)
Linked Title for Section

Real Time Data Collection

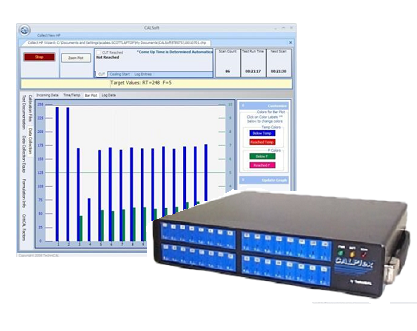

The CALPlex datalogger communicates directly with the CALSoft software using wired thermocouple equipment, enabling the user to see the temperatures and accumulated lethality values in real-time during the test. View the data in CALSoft using optional layouts such as spreadsheet, bar graph, or time/temperature graph.
Linked Title for Section

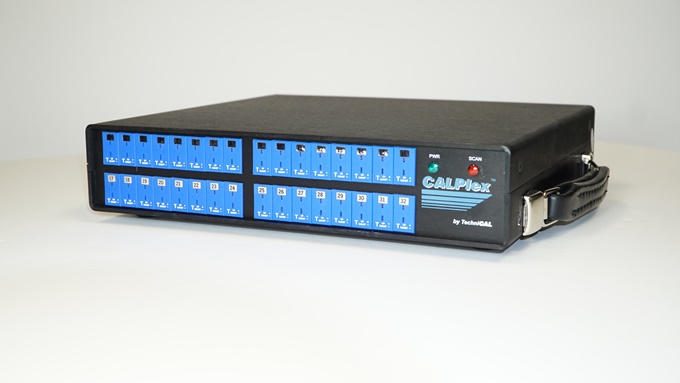

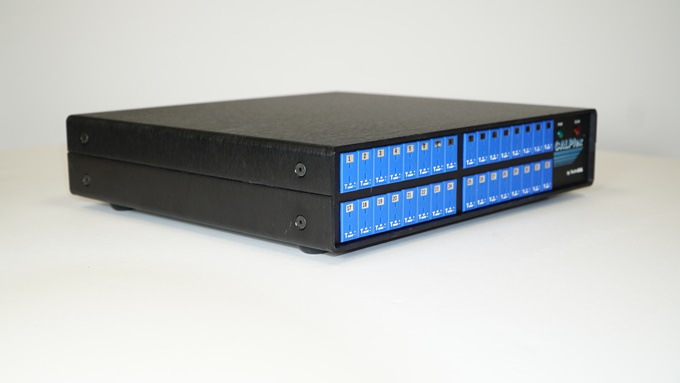

32 Channels

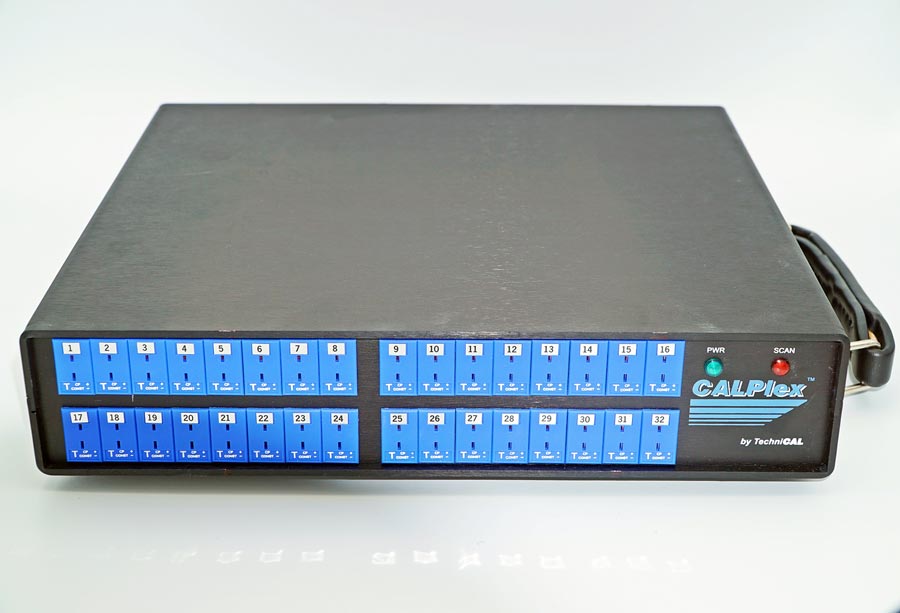

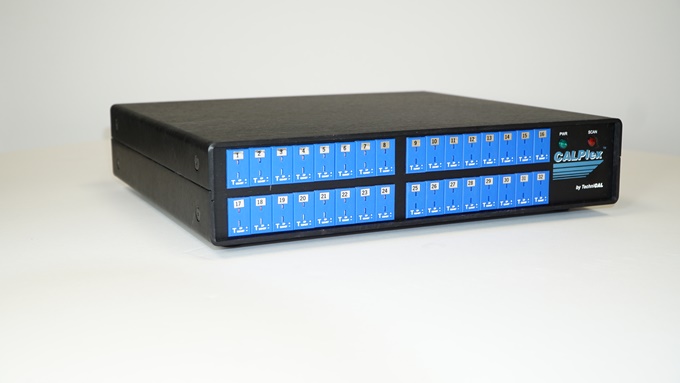

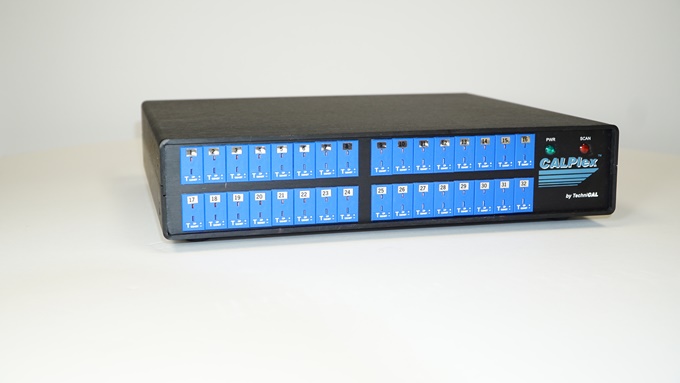

CALPlex gives the user the ability to connect 32 thermocouple wires during data collection. CALSoft scans all 32 channels during a test at the pre-determined scan rate and records the data directly to a computer. Wires must be Type-T copper constantan, with sub-miniature connectors, preferably from Ecklund-Harrison.
Linked Title for Section

Works with CALSoft

CALPlex requires the CALSoft software in order to communicate and collect data during heat penetration and temperature distribution testing. The CALSoft software was designed specifically for this use by our team of Process Authority experts. CALSoft is the industry leading thermal processing software.
Linked Title for Section

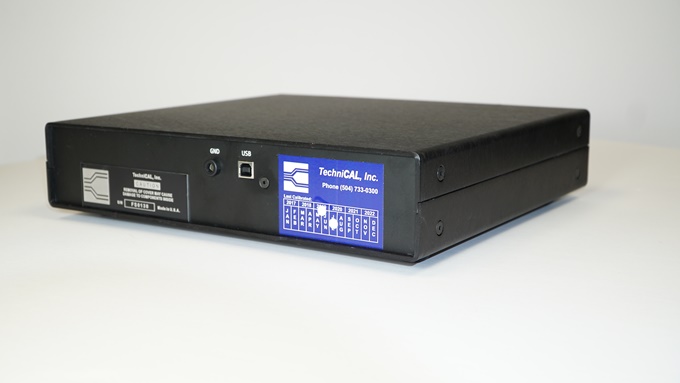

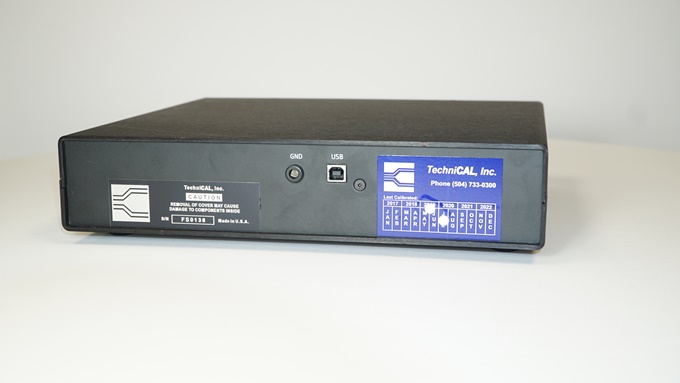

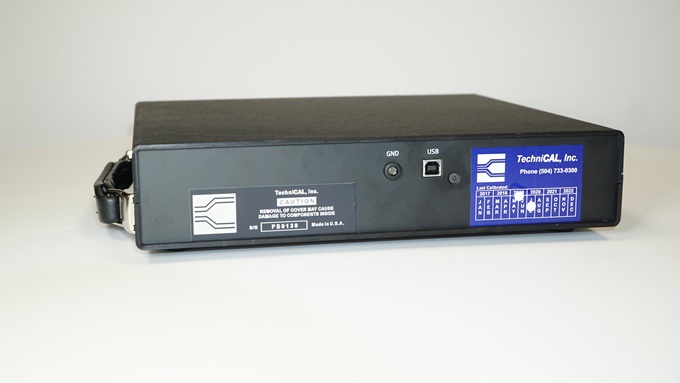

USB Connectivity

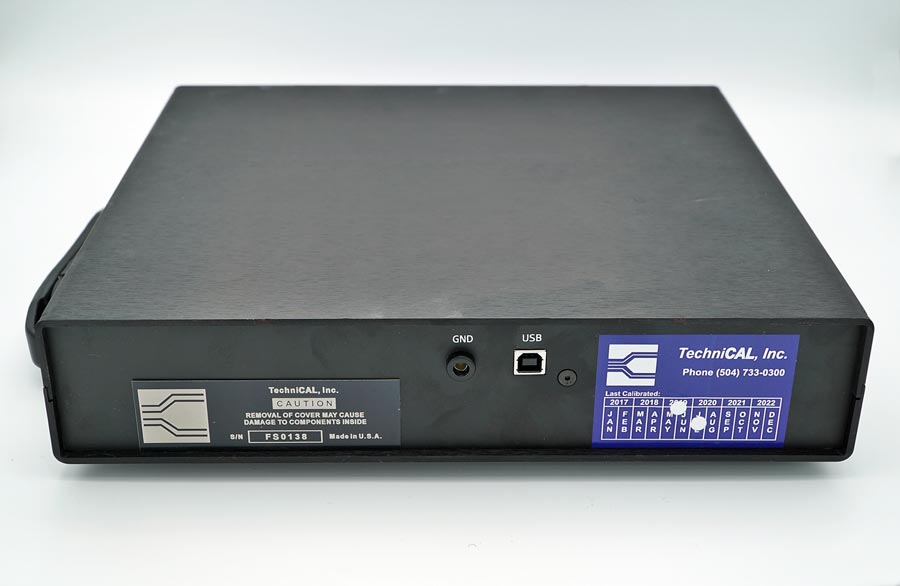

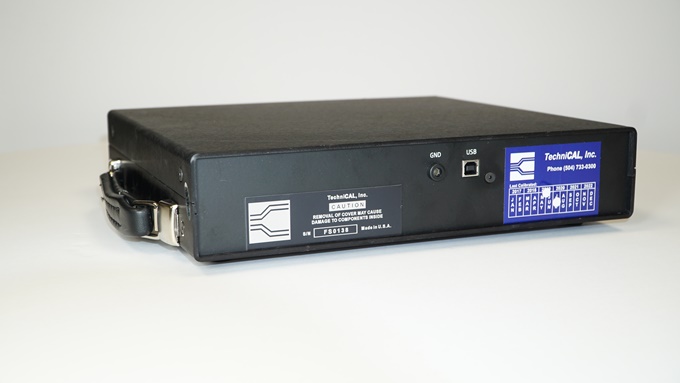

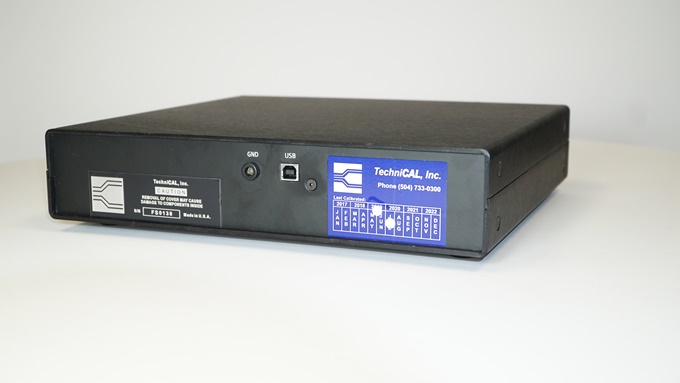

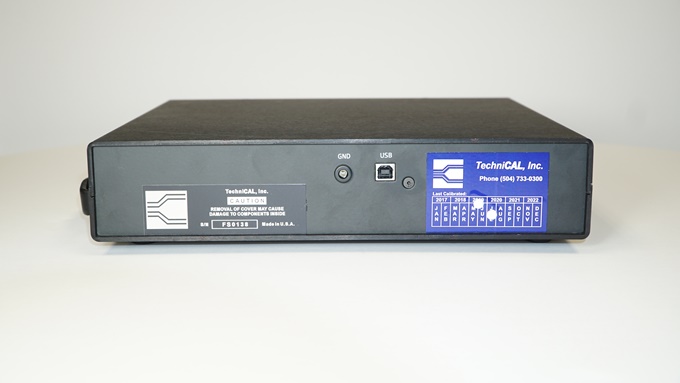

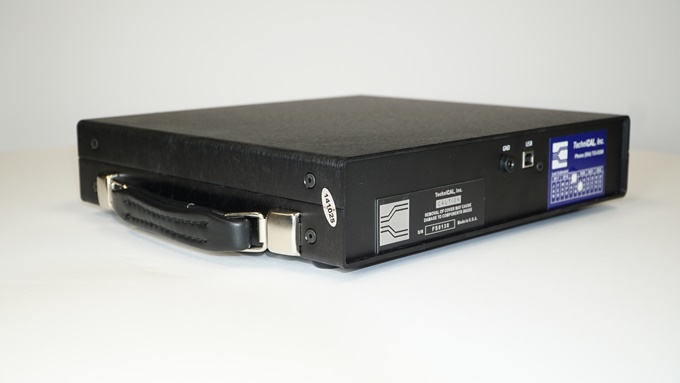

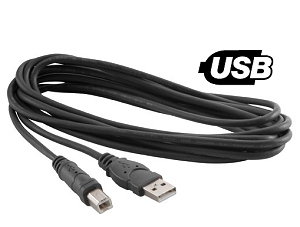

CALPlex connects directly to your computer's USB port using the included USB cable. No adapters are required. Communication AND power come from the USB connection. Therefore, no power connection or battery is necessary in the CALPlex datalogger.
Linked Title for Section

CALPLex Specifications
